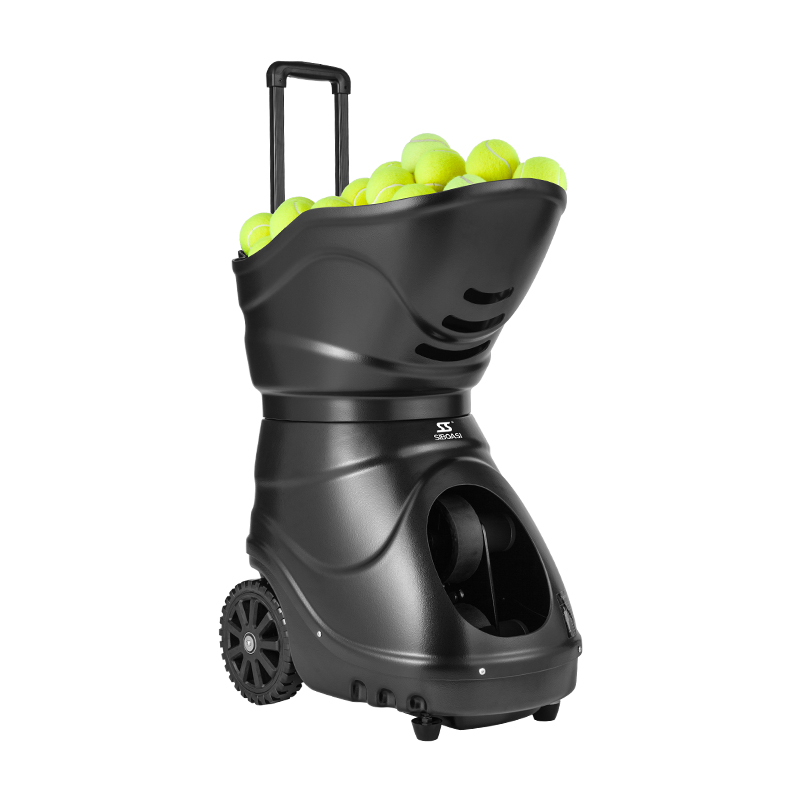

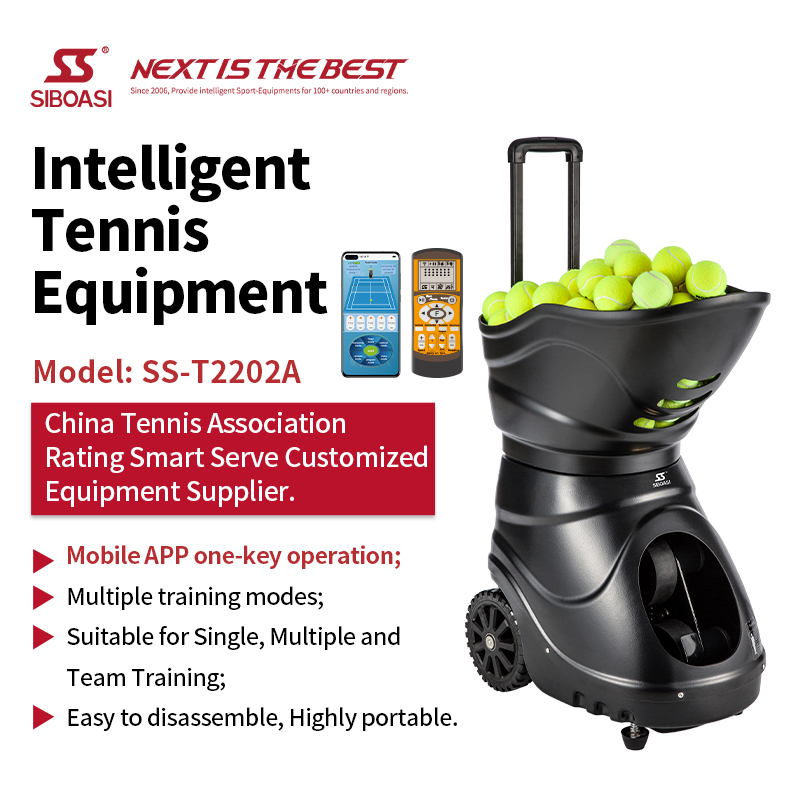

T2202A Tennis Ball Machine
The professional tennis ball machine – also known as tennis training machine, tennis ball launcher, tennis shooter – trusted by clubs, academies, and coaches worldwide. Features APP + remote control, 150-ball capacity, 21 programmable spots, top/back spin, and 360W motor. Perfect for professional training and home use.

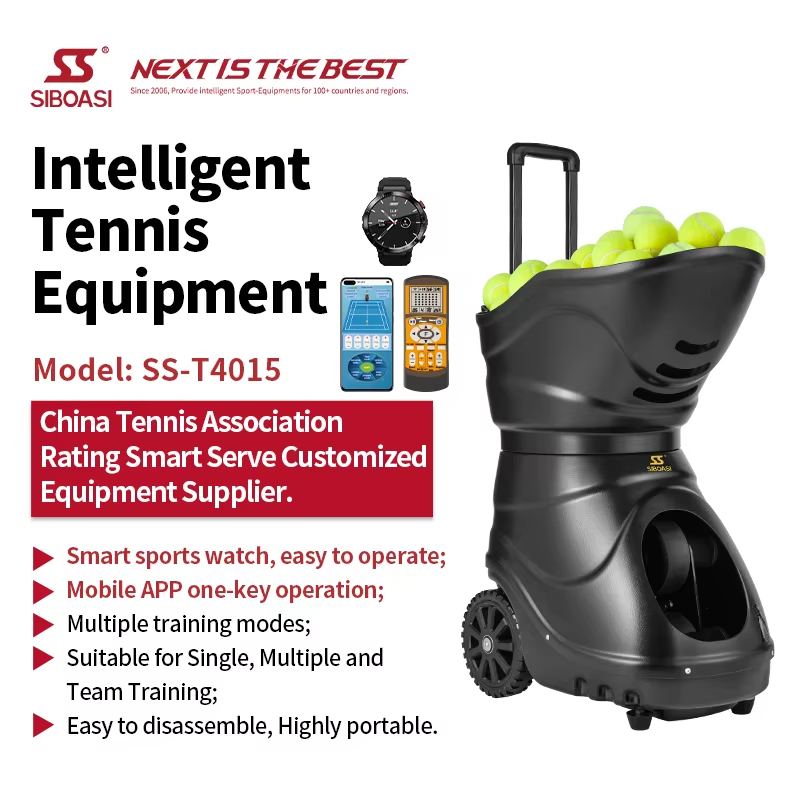

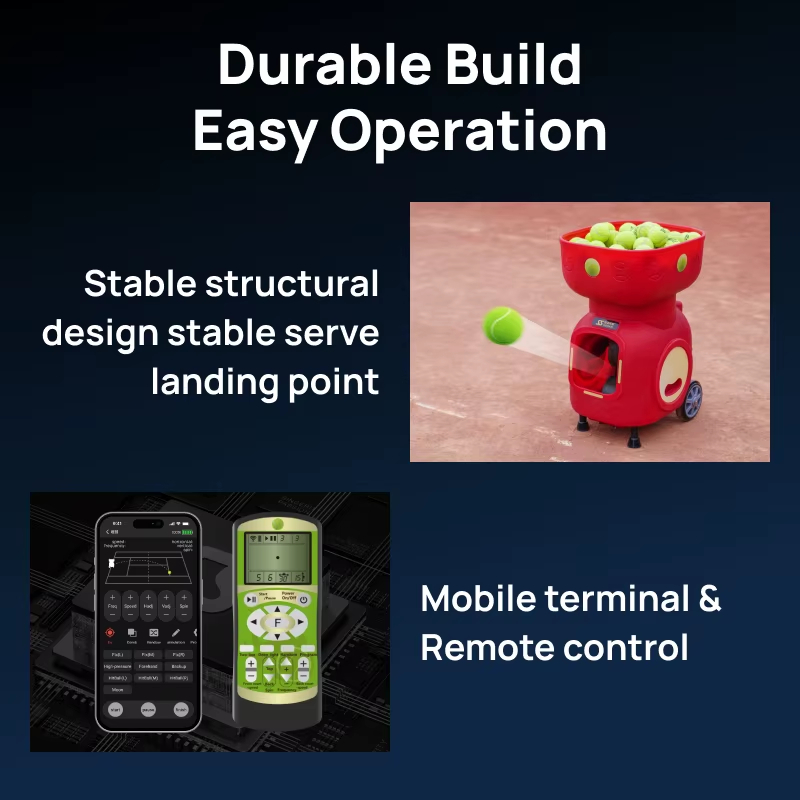

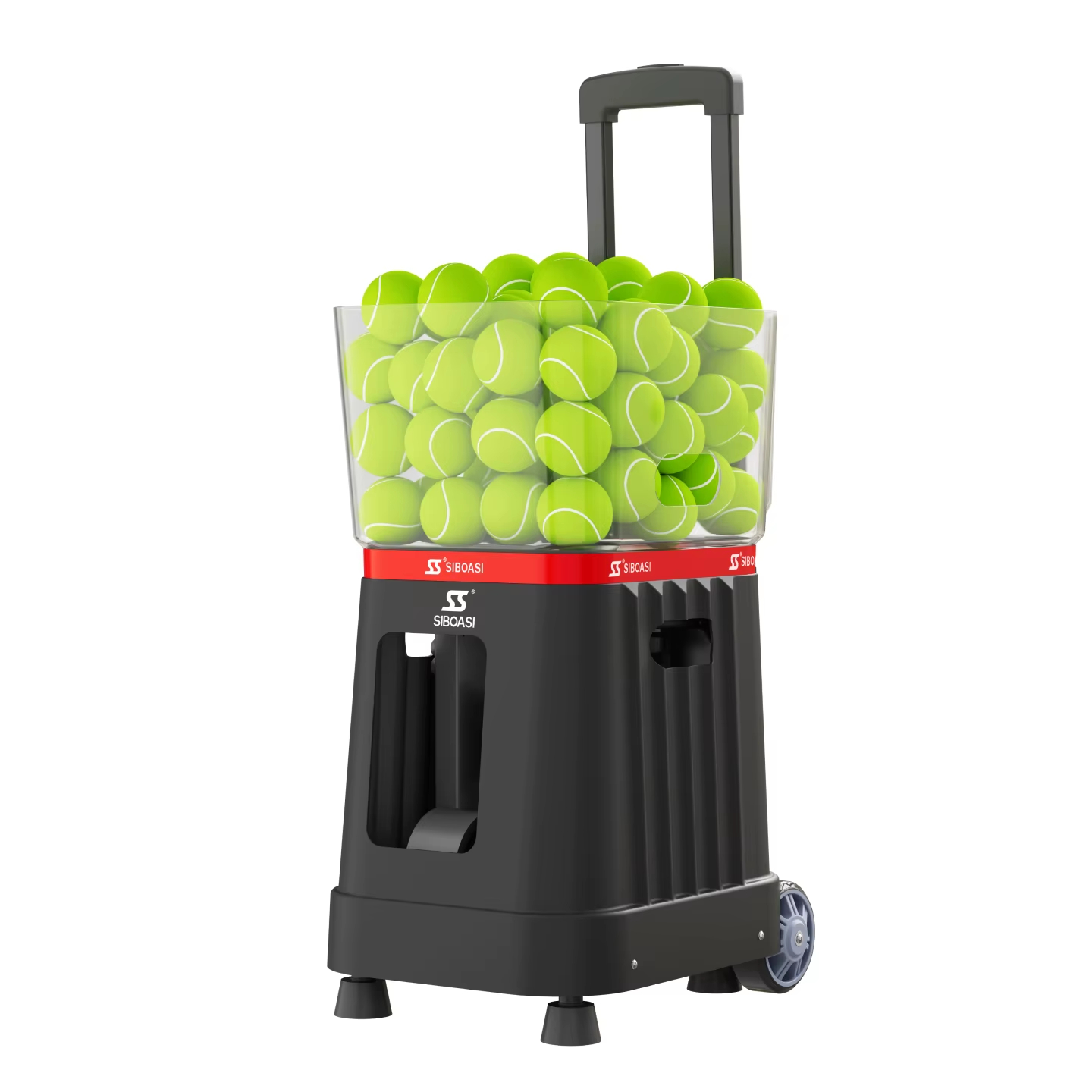

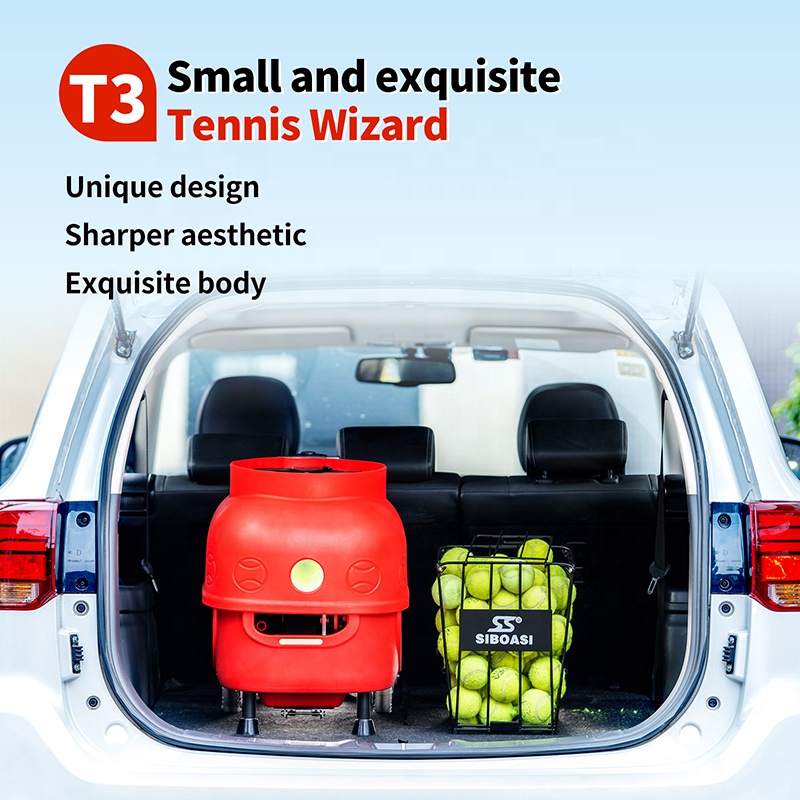

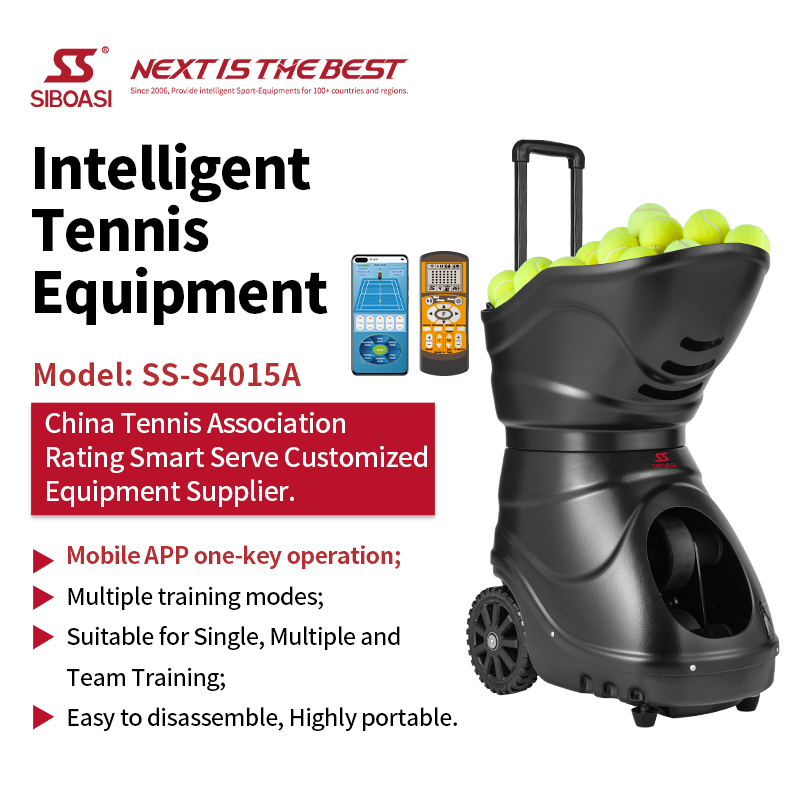

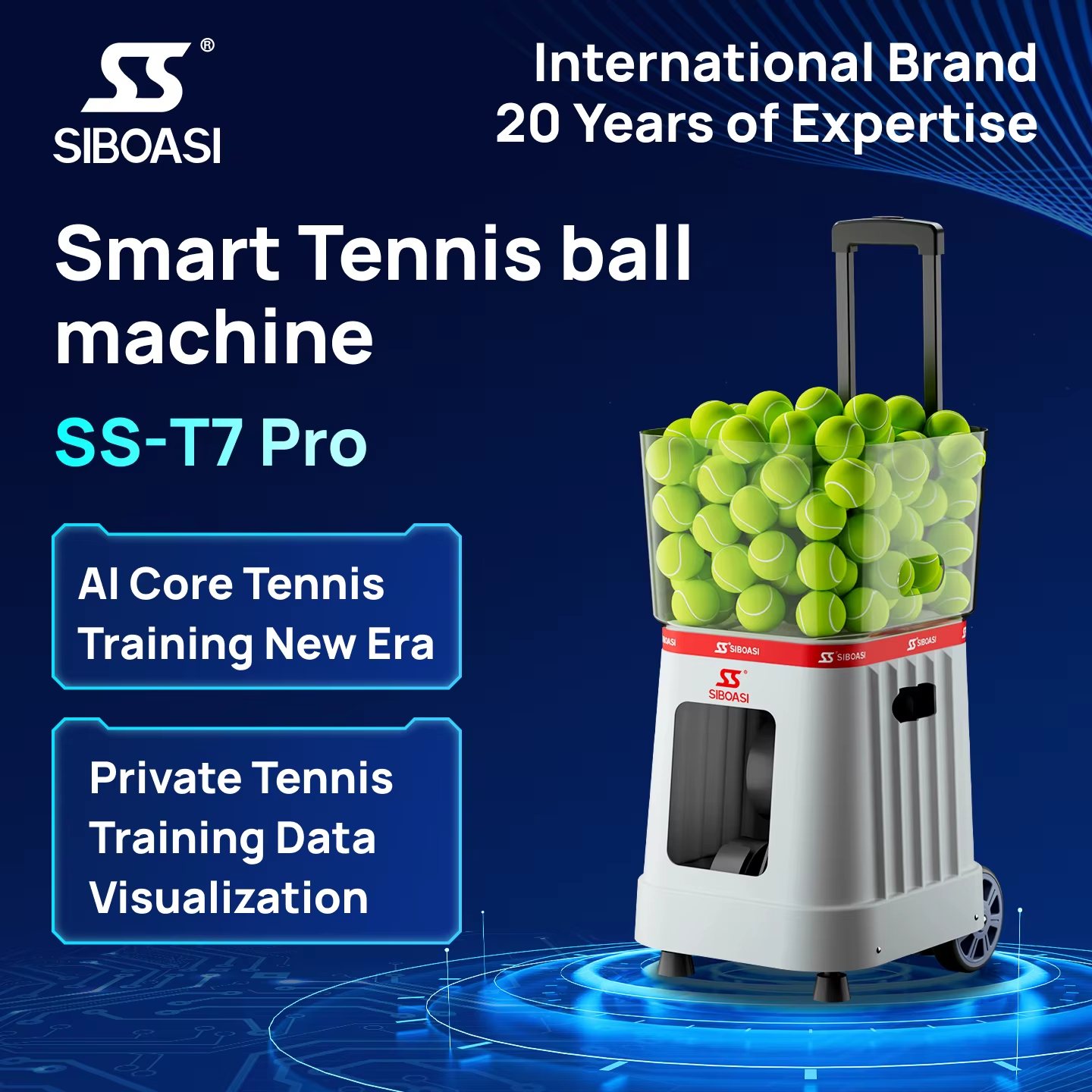

| Model | T1 | T3 | T5 | T7 | T2202A | T2300A | S4015A | T4015 |
|---|---|---|---|---|---|---|---|---|
| Price (USD) | $338-354 | $600-615 | $908-923 | $1,215-1,231 | $2,154-2,277 | $2,462-2,585 | $2,615-2,892 | $5,538-5,846 |
| Product Image |  |
 |
 |
 |
 |
 |
 |
 |
| APP Control | โ | โ | โ | โ | โ | โ | โ | โ |
| Remote Control | โ | โ | โ | โ | โ | โ | โ | โ |
| Battery | โ | โ | 12V | 12V | 12V/18AH | 12V/28.5AH | 12V/28.5AH | 12V/28.5AH |
| Ball Capacity | 120 | 120 | 120 | 120 | 150 | 150 | 150 | 150 |
| Programmable Spots | โ | 21 | 21 | 21 | 21 | 21 | 35 | 35 |
| Programming Modes | โ | 3 Groups | 5 Groups | 10 Groups | 3 Groups | 3 Groups | 3 Groups | 3 Groups |
| Top/Back Spin | โ | โ | โ | โ | โ | โ | โ | โ |
| Three-Line Ball | โ | โ | โ | โ | โ | โ | โ | โ |
| Narrow Two-Line | โ | โ | โ | โ | โ | โ | โ | โ |
| Net Weight (KG) | 14.5 | 16 | 17 | 17 | 25.5 | 26 | 26 | 26 |
| Max Power (W) | – | 170 | 170 | 170 | 360 | 360 | 360 | 360 |
โญ T2202A is our recommended model โ Best balance of features and price: 21 programmable spots, 150 balls, APP+remote control, top/back spin. Click any image to enlarge.
Engineered for Professional Tennis Training

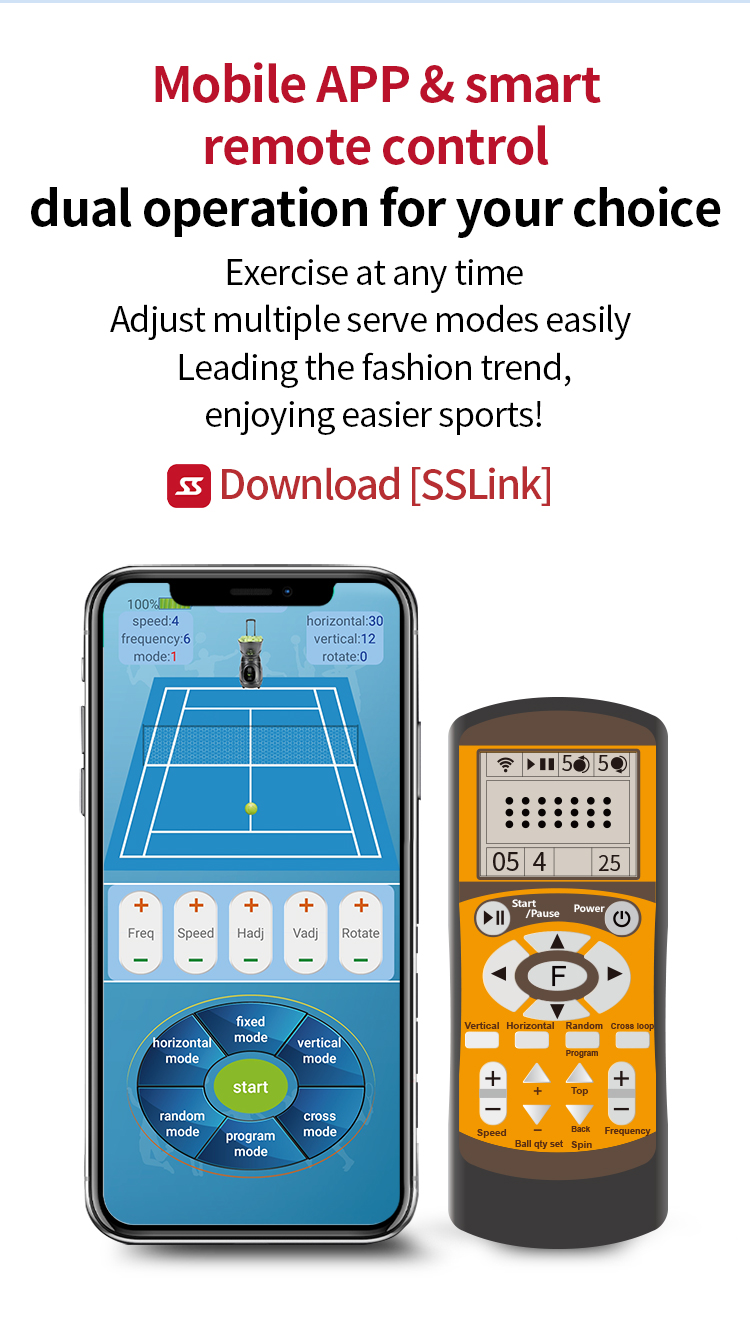

APP + Remote Control
Full SS-Link APP (iOS/Android) plus dedicated remote. Adjust speed, frequency, angles, and programmable drills wirelessly. Battery level display on APP.
21 Programmable Spots
Create custom drills with up to 21 programmable spots. Perfect for flat shots, volleys, lobs, and full-court random training.

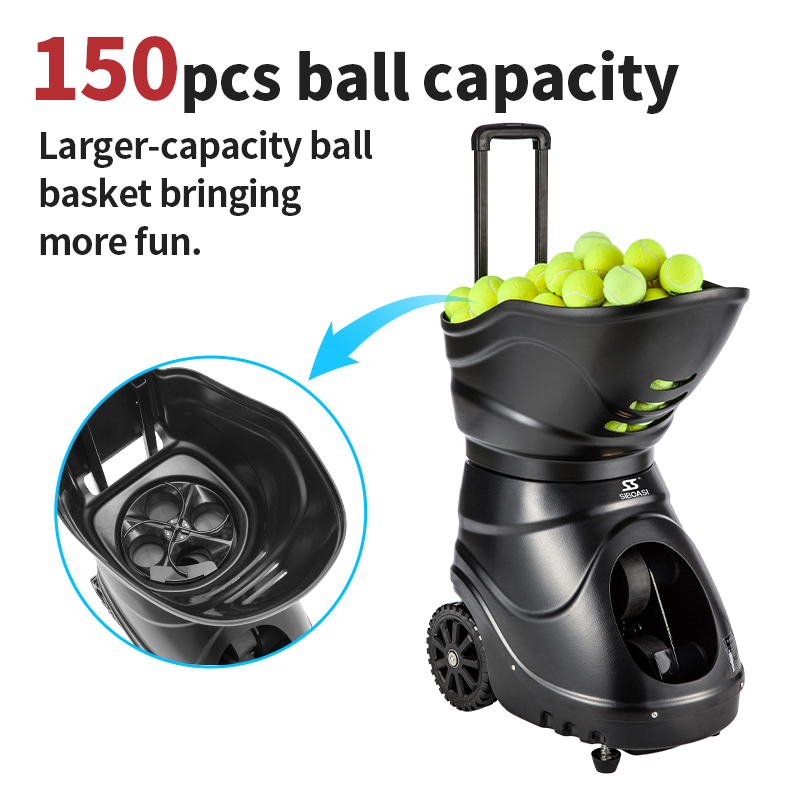

150-Ball Capacity
Large 150-ball capacity allows for extended training sessions without frequent reloading. 12V/18AH battery support.
360W Powerful Motor

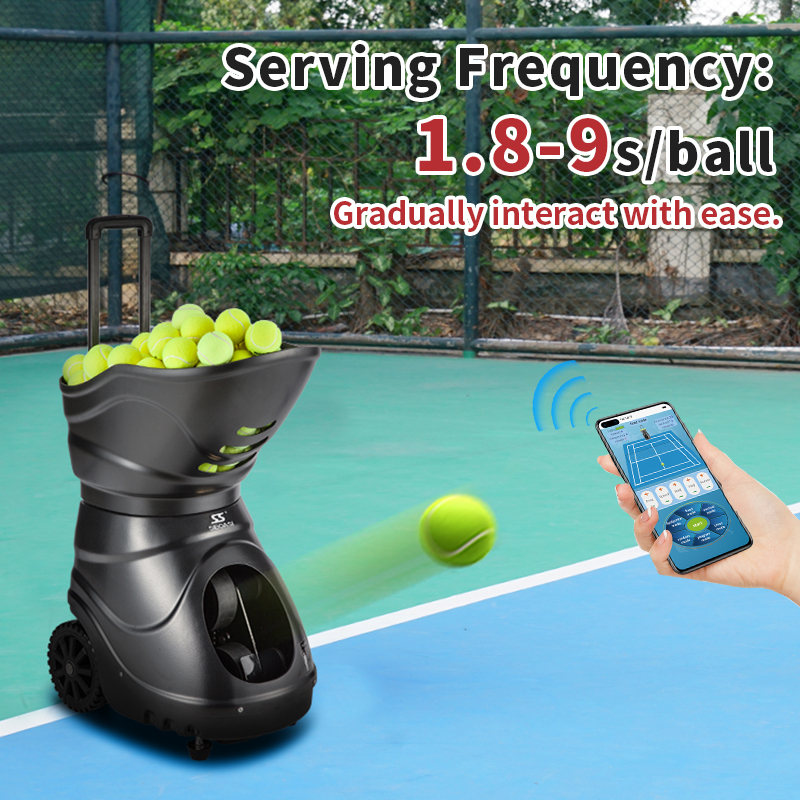

Ball speed 20-140 km/h, frequency 1.8-9 seconds/ball. Ball height up to 8 meters. 1-9 speed levels adjustable.
Topspin & Backspin
6 levels of top spin and back spin adjustment for realistic ball physics. Master different shot types.

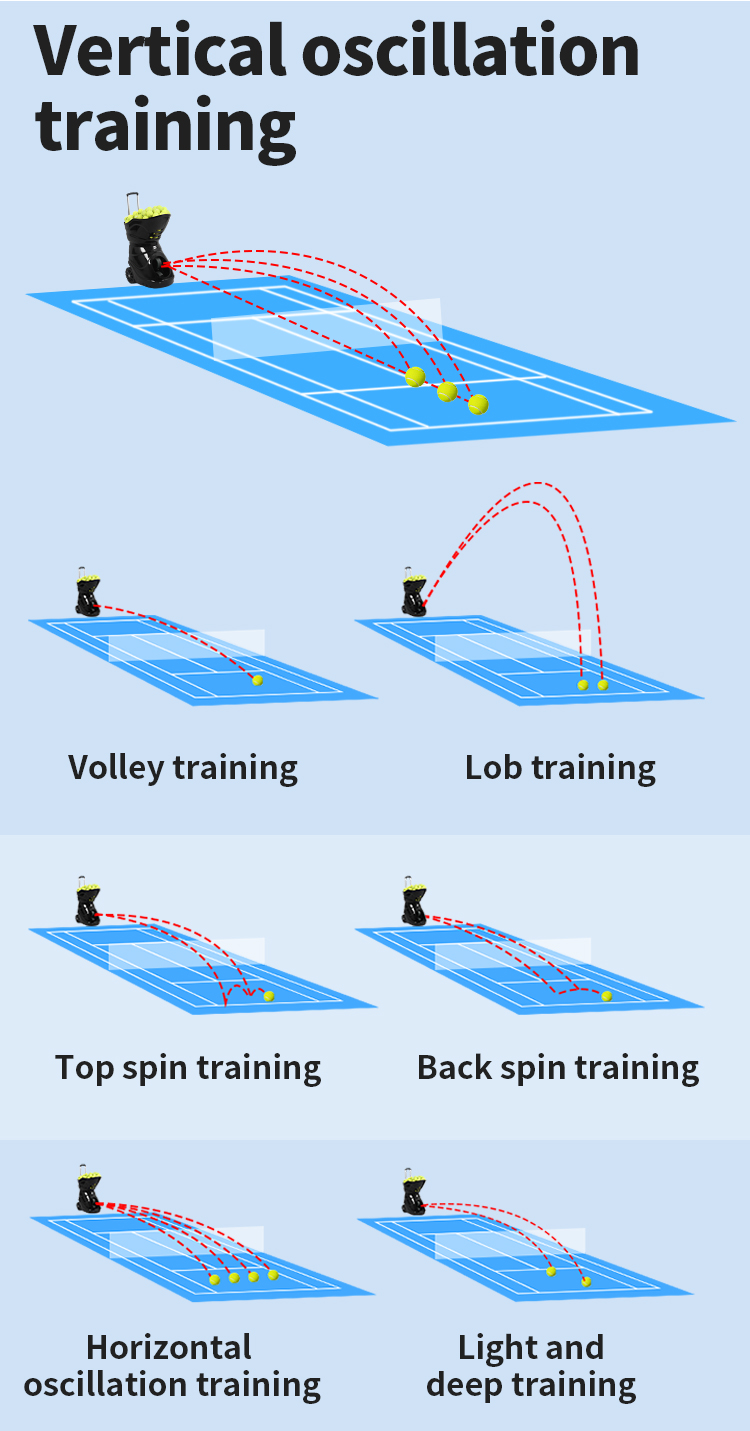

Multi-Training Modes

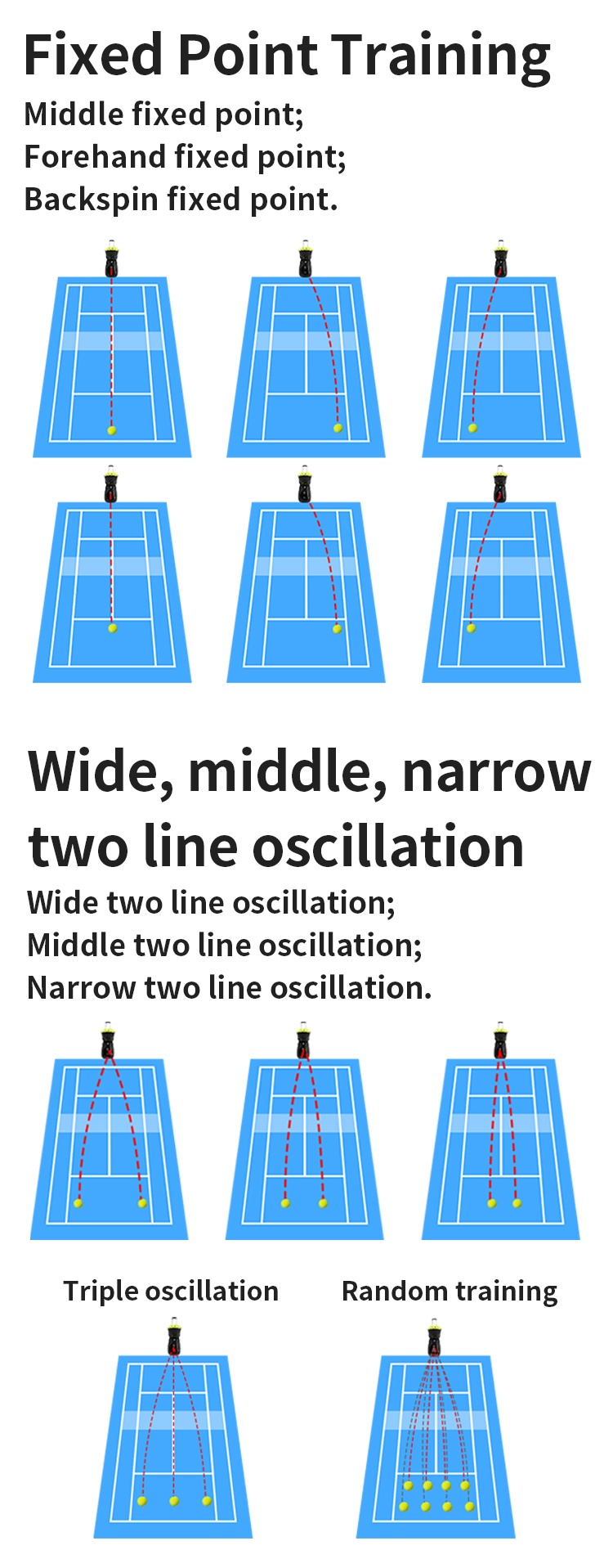

Fixed spot, horizontal 2/3-line, random, cross-line, wide/middle/narrow two-line, and full court random.
Professional Range
Ball distance 10-30 meters, height 1-8 meters. Full court coverage for comprehensive training.

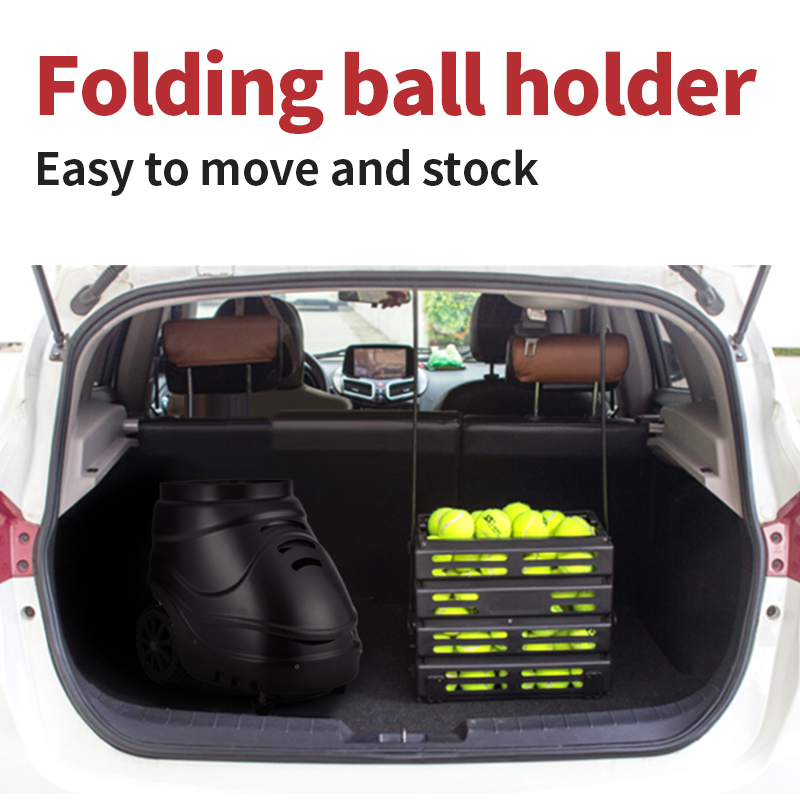

Portable Design
Folded size 57ร41ร51 cm with telescopic handle and moving wheels. Easy to transport and store.
Smart Safety System
Power-on self-test, abnormal alarm, overcurrent protection, low battery protection, and OTA remote upgrade.
T2202A Tennis Ball Machine Specs
| Product Parameters | |
|---|---|
| Product Name | T2202A Tennis Ball Machine / Tennis Ball Launcher |
| Ball Capacity | 150 tennis balls |
| Power | 360W |
| Voltage | AC 100V – 240V (Global) + DC 12V/18AH Battery |
| Frequency | 1.8 – 9 seconds/ball |
| Ball Speed | 20 – 140 km/h |
| Ball Distance | 10 – 30 meters |
| Ball Height | 1 – 8 meters |
| Horizontal Angle | 0-60 steps |
| Vertical Angle | 0-60 steps |

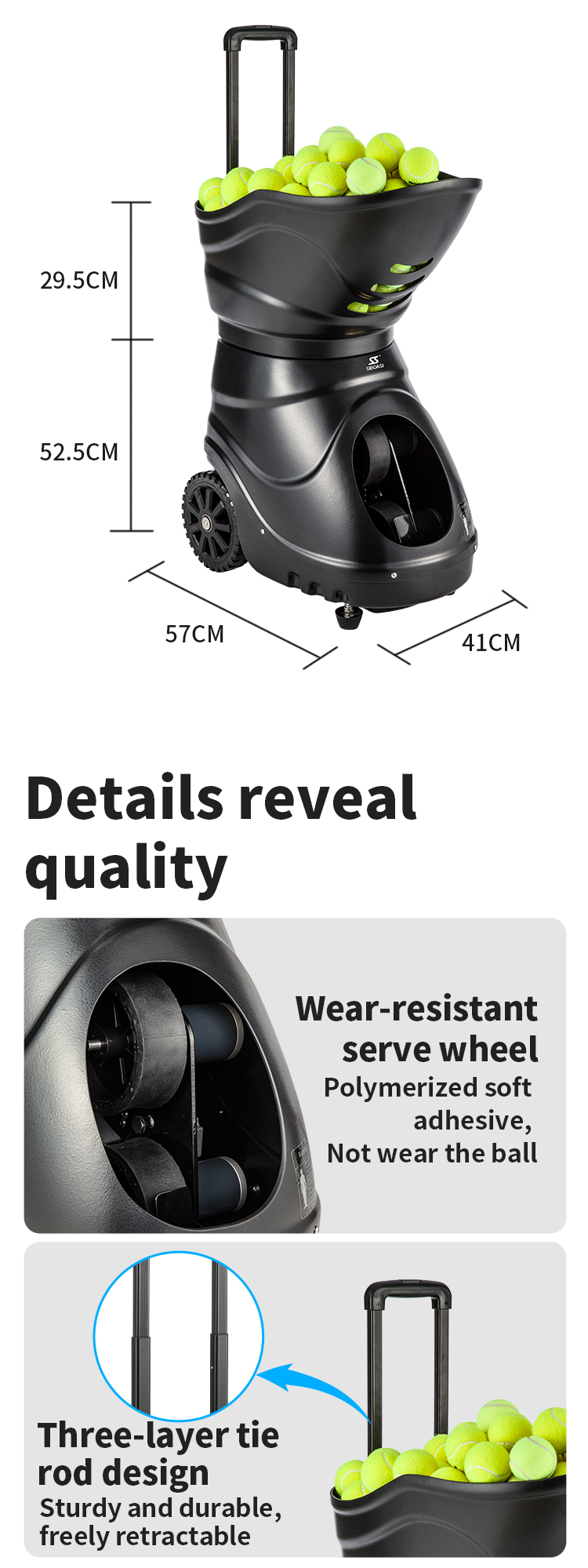

| Dimensions (Open) | 57 ร 41 ร 105 cm |
| Dimensions (Folded) | 57 ร 41 ร 51 cm |
| Net Weight | 25.5 KG |
| Package Size | 66.5 ร 49 ร 56.5 cm |
| Warranty | 2-Year comprehensive |
Complete Training Coverage
Complete Package

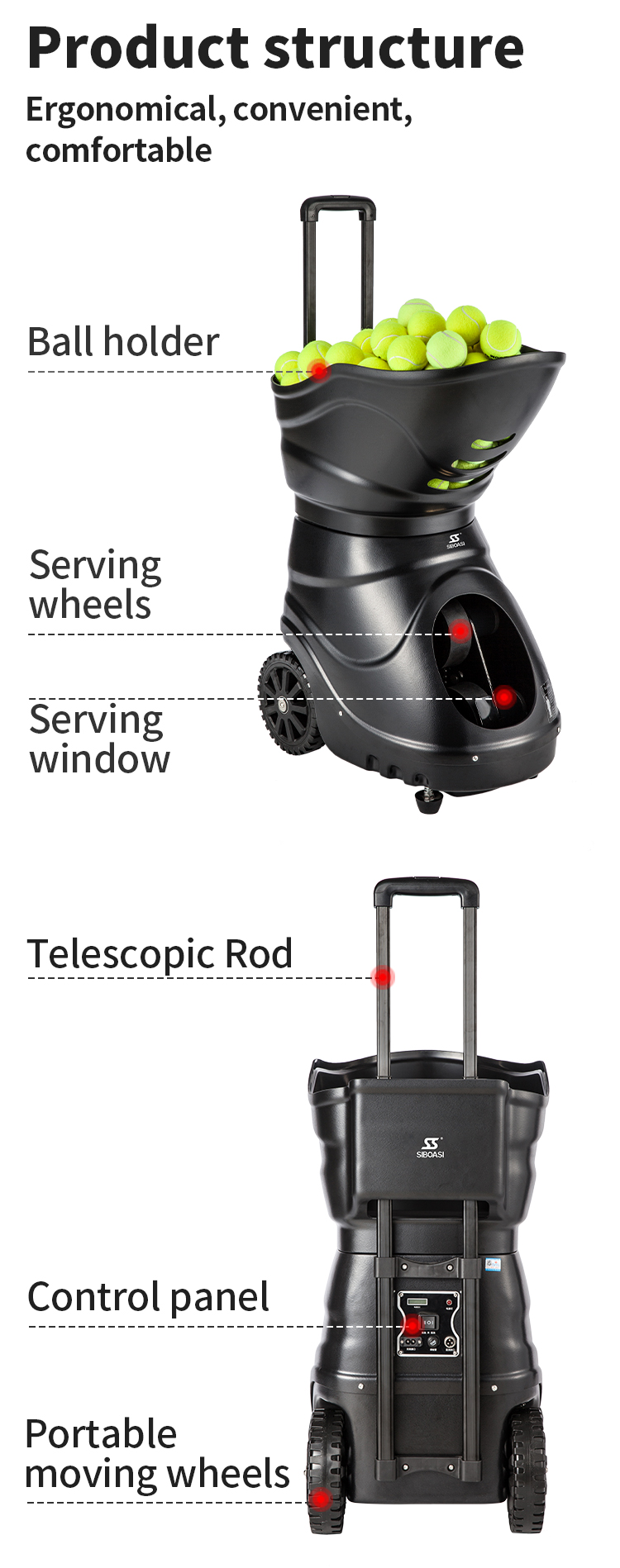

See Every Detail of the T2202A
See the T2202A in Action
Common Issues & Solutions
| Fault Phenomenon | Cause | Solution |
|---|---|---|
| No power | AC/DC power selection error / Fuse broken | Choose correct power / Replace fuse |
| No serving | Power not on / Ball stuck inside | Check power and remote switch / Remove stuck ball |
| Ball out off court | Machine placed incorrectly / Speed too fast | Place machine correctly / Decrease speed |
Frequently Asked Questions
Ready to Elevate Your Tennis Training?
Join hundreds of satisfied tennis clubs, academies, and coaches using the T2202A tennis ball machine – the ultimate tennis training machine.
VEKEDA SPORTS | 2-Year Warranty | Free Shipping to USA, EU, AU
