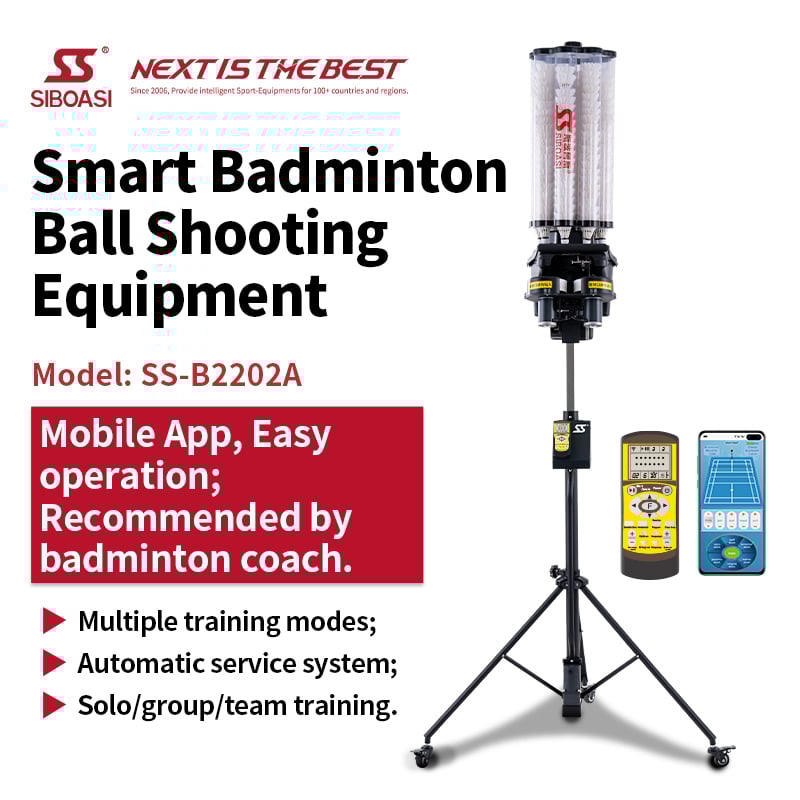

B2202A Badminton Machine
The professional badminton training machine – also known as shuttlecock shooting machine, shuttlecock feeder, badminton shooter – trusted by clubs, academies, and coaches worldwide. Features APP + remote control, 200-ball capacity, 14 programmable spots, electric lift system, and 360W motor. Perfect for professional training and home use.
Find Your Perfect Badminton Machine

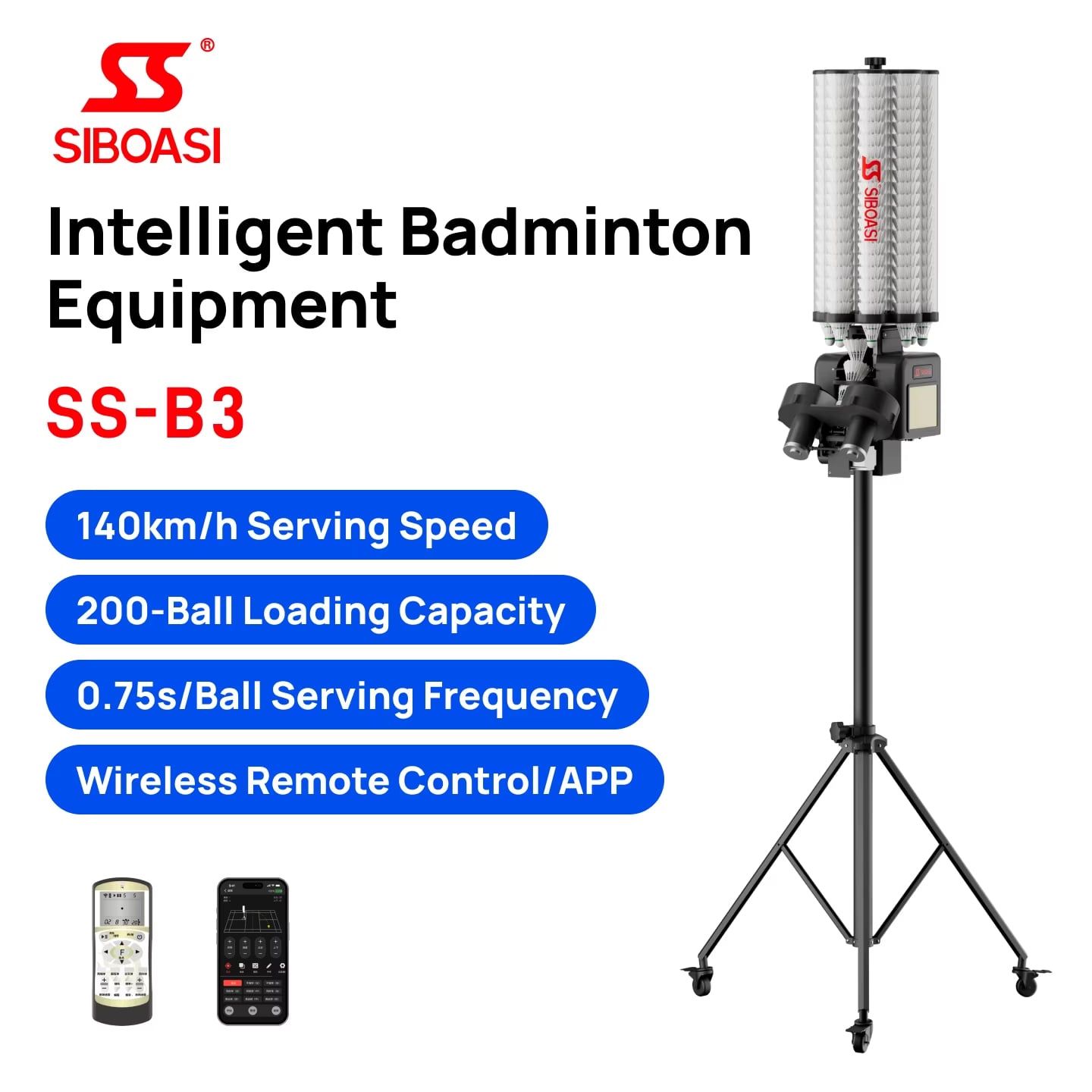

| Feature | B3 | B5 | B7 | B2202A | B2300A | B4025A |
|---|---|---|---|---|---|---|
| Product Image |  |
 |
 |
 |
 |
 |
| Price (USD) | $600-615 | $908-923 | $1,215-1,231 | $2,154-2,277 | $2,462-2,585 | $2,769-3,046 |
| APP Control | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Remote Control | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Power Supply | AC 100-240V | AC + 24V Battery | AC + 24V Battery | AC + 12V/18AH | AC + 12V/18AH | AC + 12V/18AH |
| Ball Capacity | 200 | 200 | 200 | 200 | 200 | 200 |
| Max Power (W) | 230 | 230 | 230 | 360 | 360 | 360 |
| Net Weight (KG) | 19 | 26 | 26 | 31 | 31 | 31 |
| Height Adjustable | Fixed (121cm) | Manual Crank | Manual Crank | Electric Lift | Electric Lift | Electric Lift |
| Programmable Spots | × | 21 | 21 | 14 | 14 | 21 |
| Programming Modes | × | 5 Groups | 10 Groups | 3 Groups | 3 Groups | 3 Groups |
| Speed Levels | 1-3 | 1-3 | 1-3 | 1-6 | 1-6 | 1-6 |
| Frequency Levels | 1-9/1-6 | 1-9/1-6 | 1-9/1-6 | 1-9 | 1-9 | 1-9 |
| Three-Line Ball | × | × | ✅ | × | ✅ | ✅ |
| Front/Rear Random | × | × | × | × | ✅ | ✅ |
| Smash Shot | × | ✅ | ✅ | ✅ | ✅ | ✅ |
| Low Battery Alert | × | ✅ | ✅ | ✅ | ✅ | ✅ |
| Dimensions (cm) | 122×103×208 | 122×103×300 | 122×103×300 | 122×103×305 | 122×103×305 | 122×103×305 |
| Warranty | ✅ 2-Year Comprehensive Warranty | |||||
⭐ B2202A is our recommended model — Best balance of features and price: 14 programmable spots, electric lift, 360W motor, APP+remote control. Click any image to enlarge.
Engineered for Professional Badminton Training

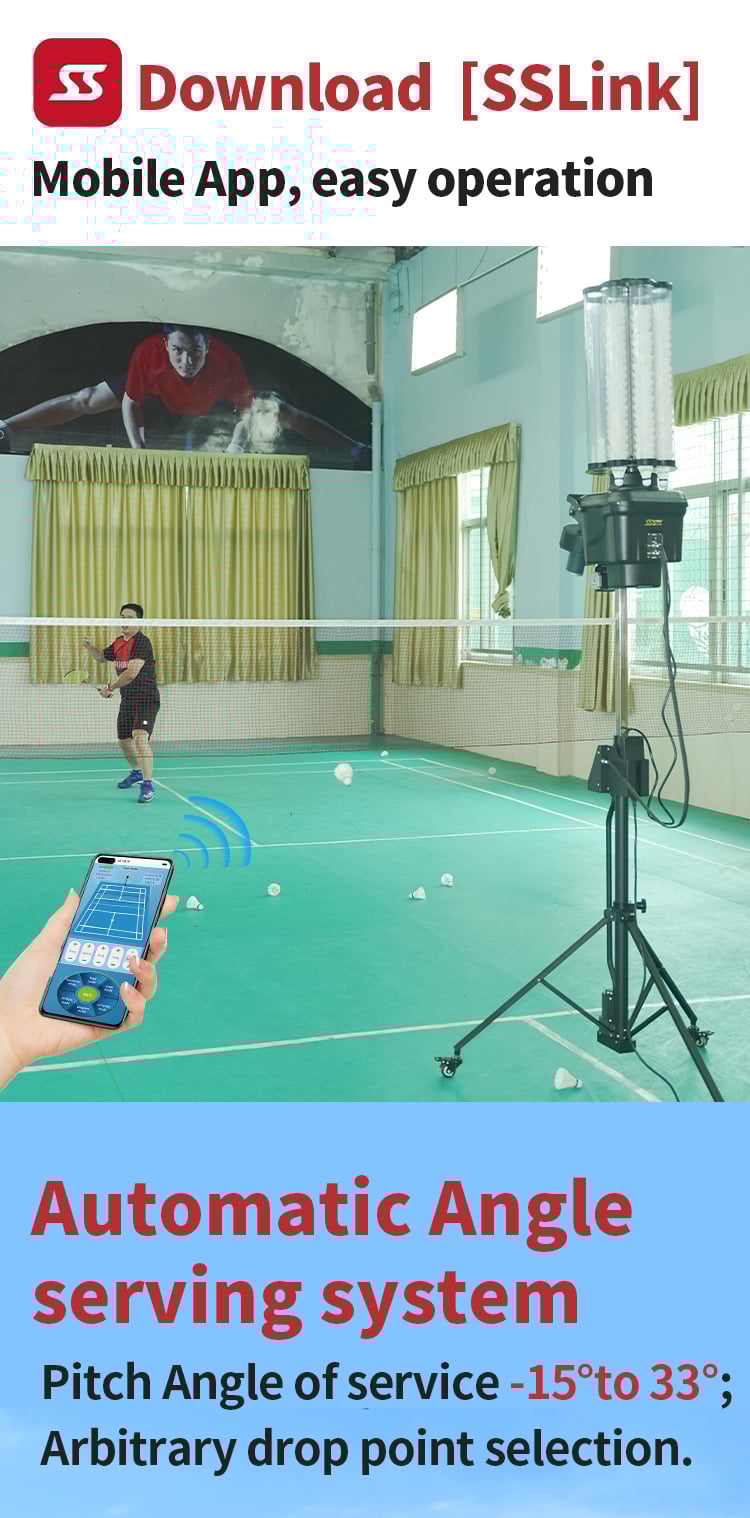

APP + Remote Control

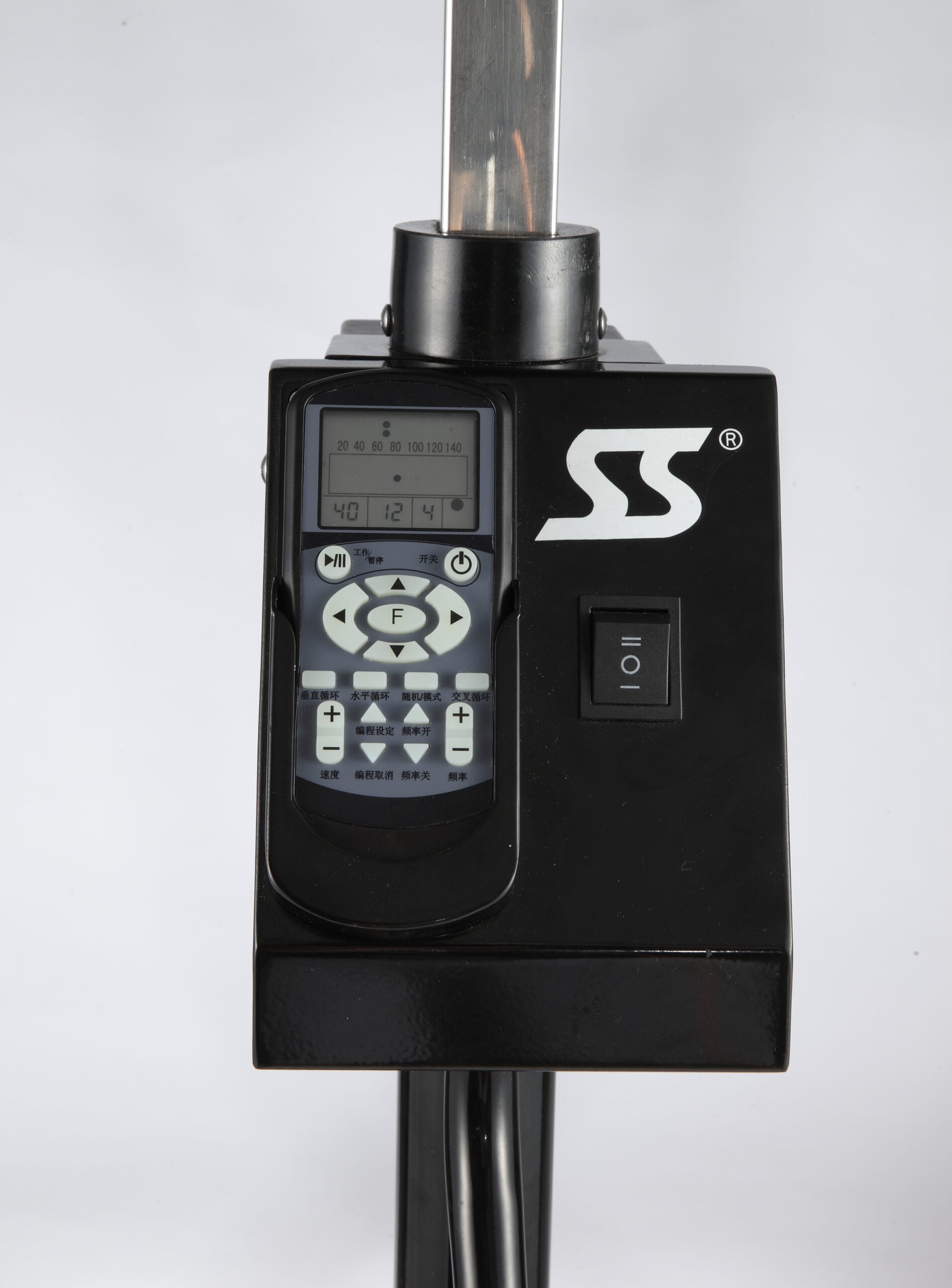

Full smartphone APP (iOS/Android) plus dedicated remote. Adjust speed, frequency, angles, and programmable drills wirelessly. Battery level display on APP.
14 Programmable Spots
Create custom drills with up to 14 programmable spots. Perfect for net shots, high clear, drive, smash, and full-court random training.
200-Ball Capacity

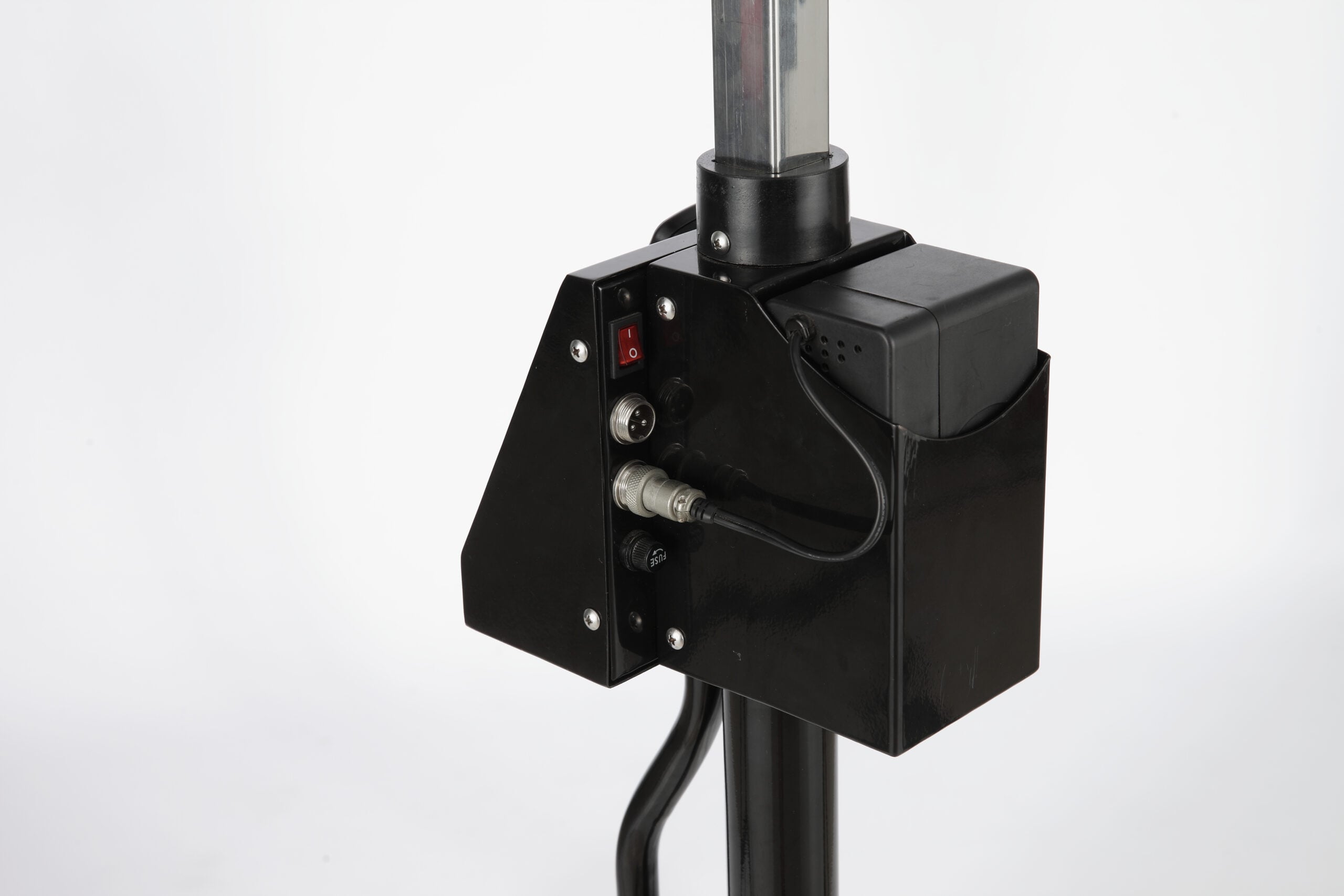

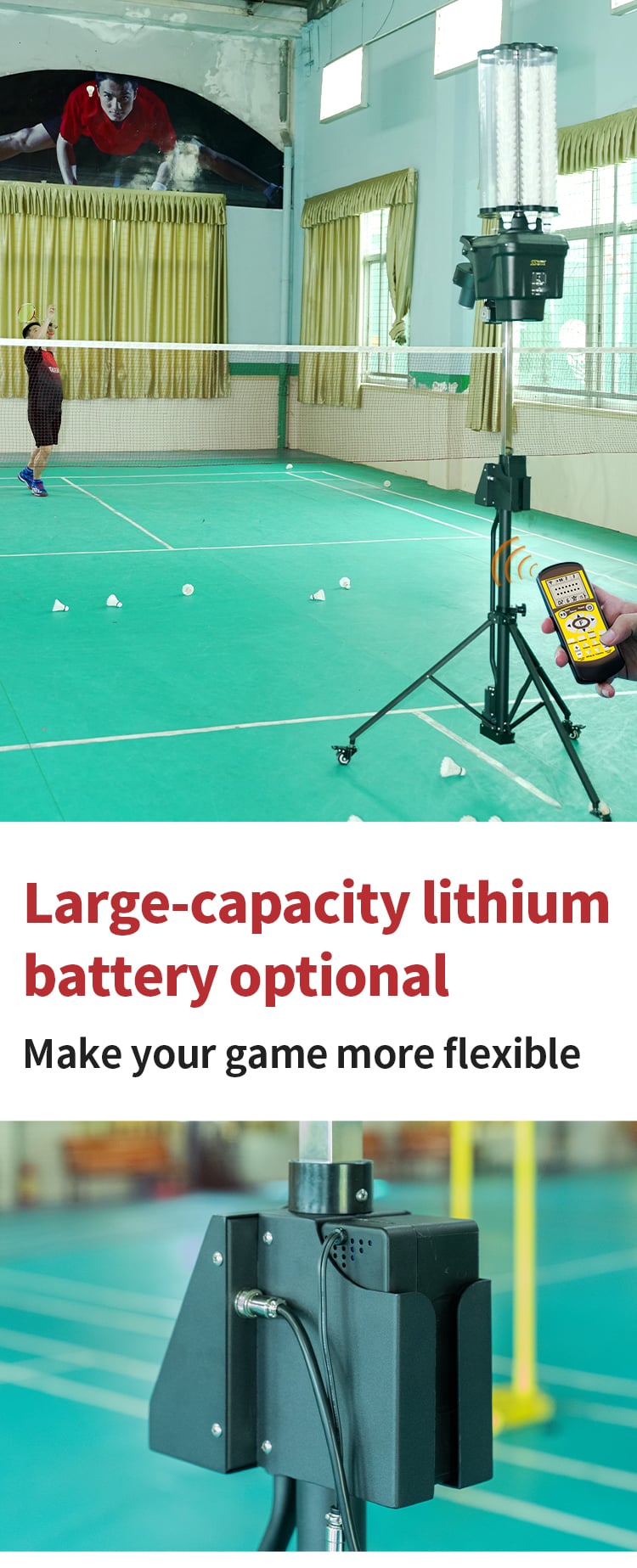

Large 200-ball capacity allows for extended training sessions without frequent reloading. 12V/18AH battery support with APP battery display.
360W Powerful Motor
Ball speed up to 140 km/h, frequency 1.2-5.5 seconds/ball. Ball height up to 7.5 meters. 1-6 speed levels adjustable.
Electric Lift System

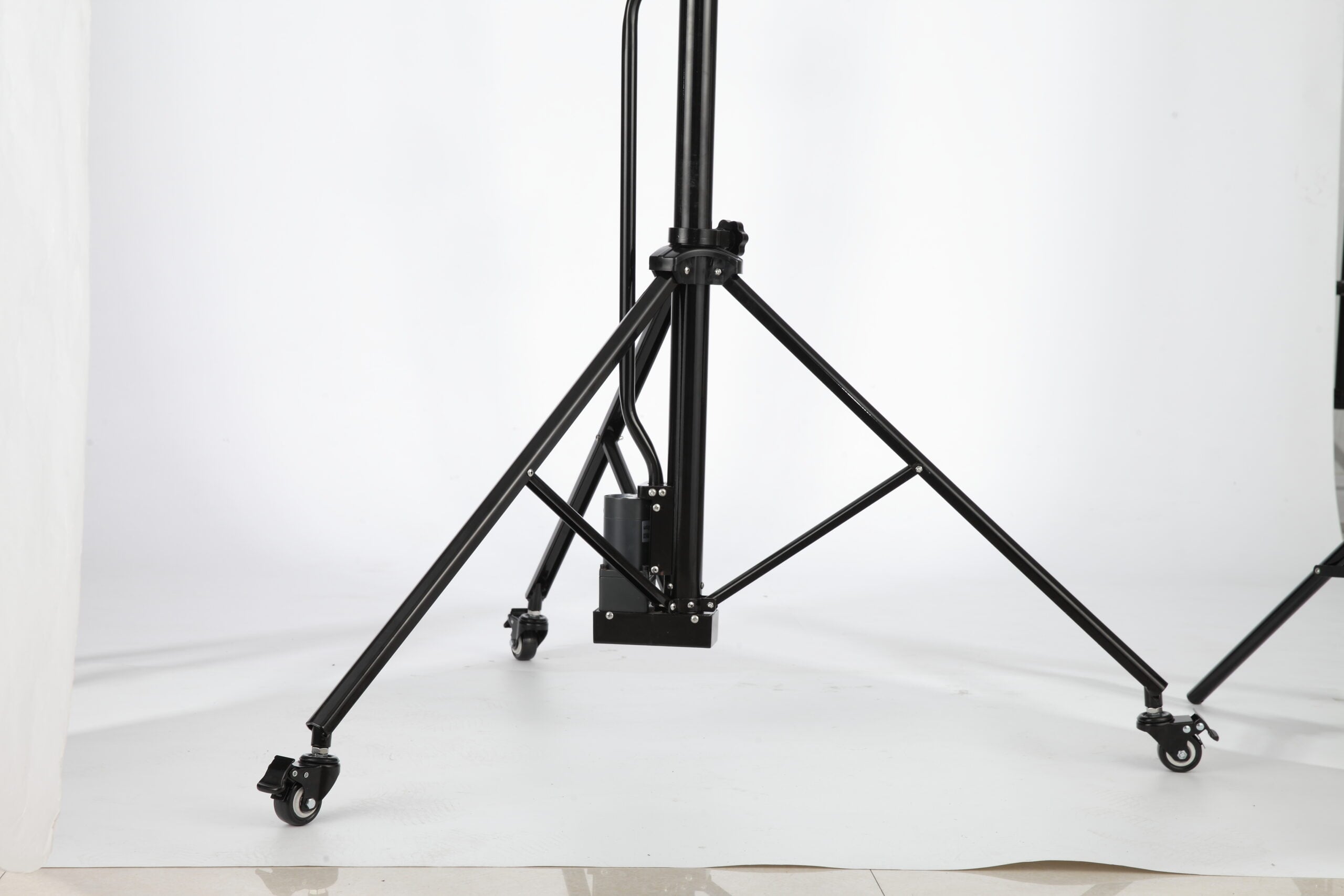

Electric lift adjusts height from 1.55m to 2.25m. Simulates real serving heights automatically with no-ball alert.

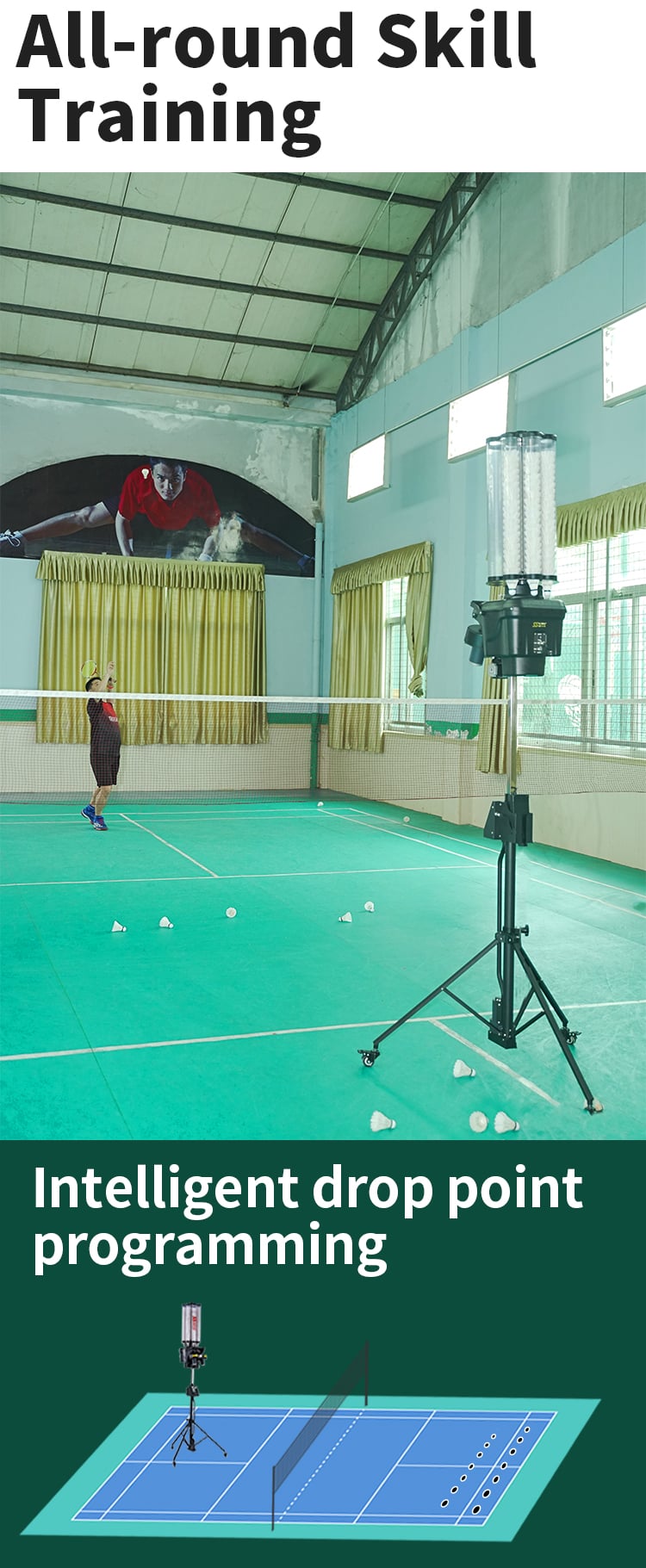

Multi-Training Modes

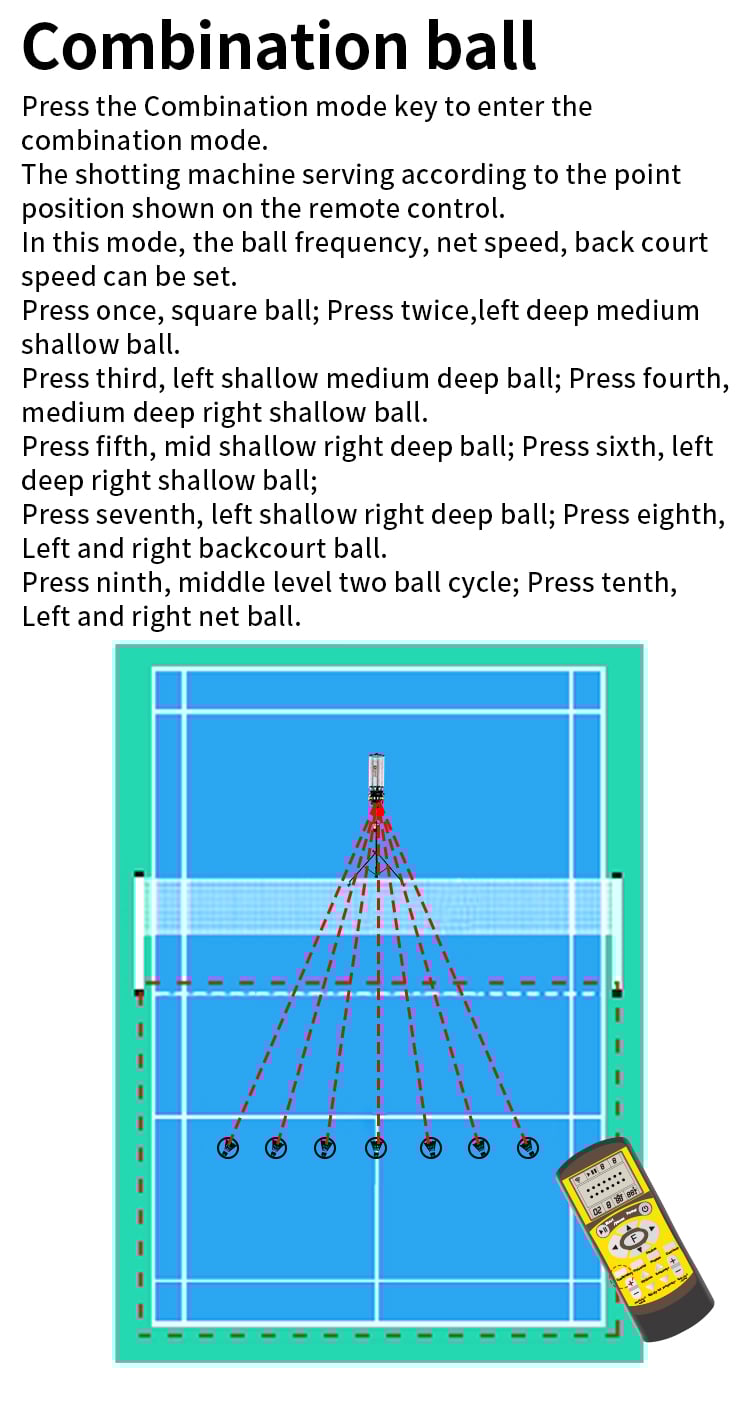

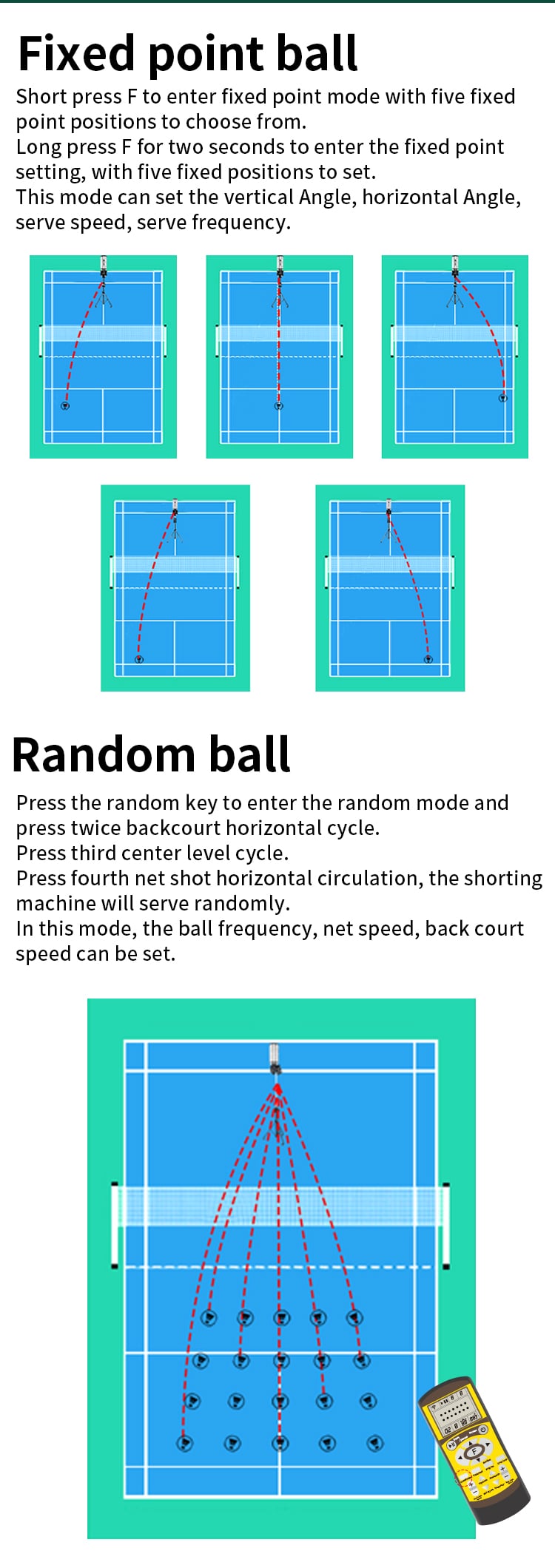

Fixed spot, vertical 2-point, horizontal 2/3-line, random, cross-line, four-corner, and full court random.
4 Professional Shots
Net shot, high clear, drive, smash. Perfect for comprehensive badminton training.
3 Programming Modes
Store up to 3 custom programming modes. One-button recall for favorite drills.
Smart Safety System
Power-on self-test, abnormal alarm, overcurrent protection, low battery protection, and OTA remote upgrade.
B2202A Badminton Machine Specs
| Product Parameters | |
|---|---|
| Product Name | B2202A Badminton Machine / Shuttlecock Shooting Machine |
| Ball Capacity | 200 shuttlecocks |
| Power | 360W |
| Voltage | AC 100V – 240V (Global) + DC 12V/18AH Battery |

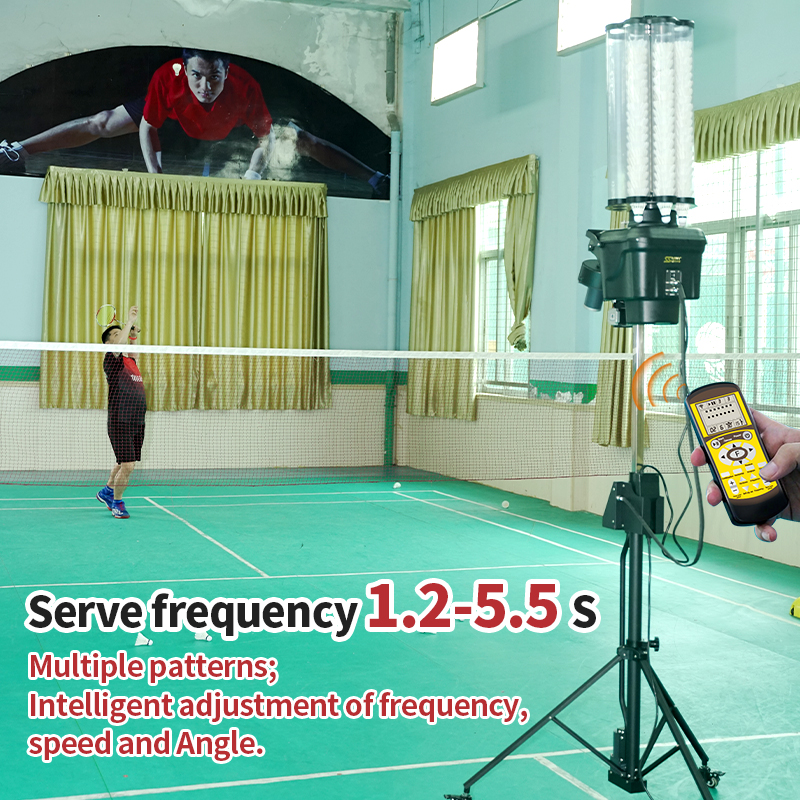

| Frequency | 1.2 – 5.5 seconds/ball |
| Ball Speed | Up to 140 km/h |
| Ball Height | Up to 7.5 meters |
| Lift Height | 1.55 – 2.25 meters (Electric) |

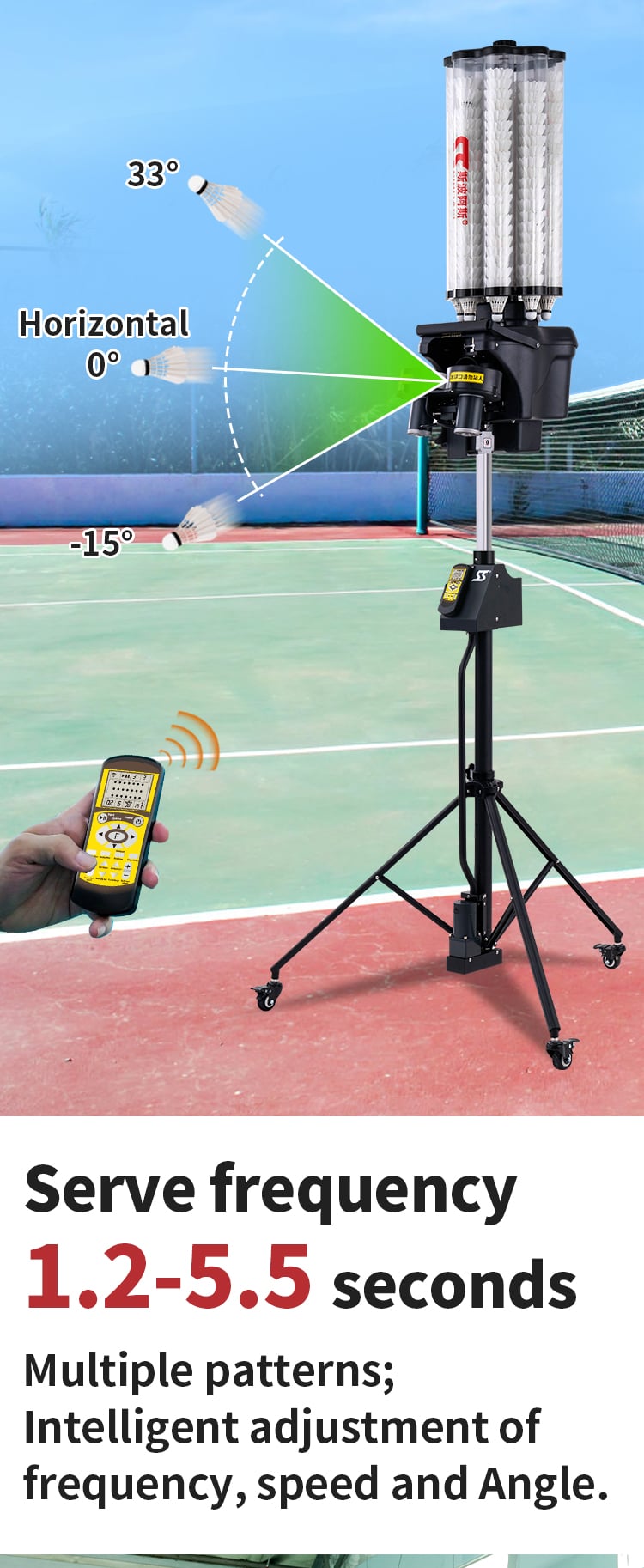

| Vertical Angle | -15° to 33° |
| Horizontal Angle | 30° |

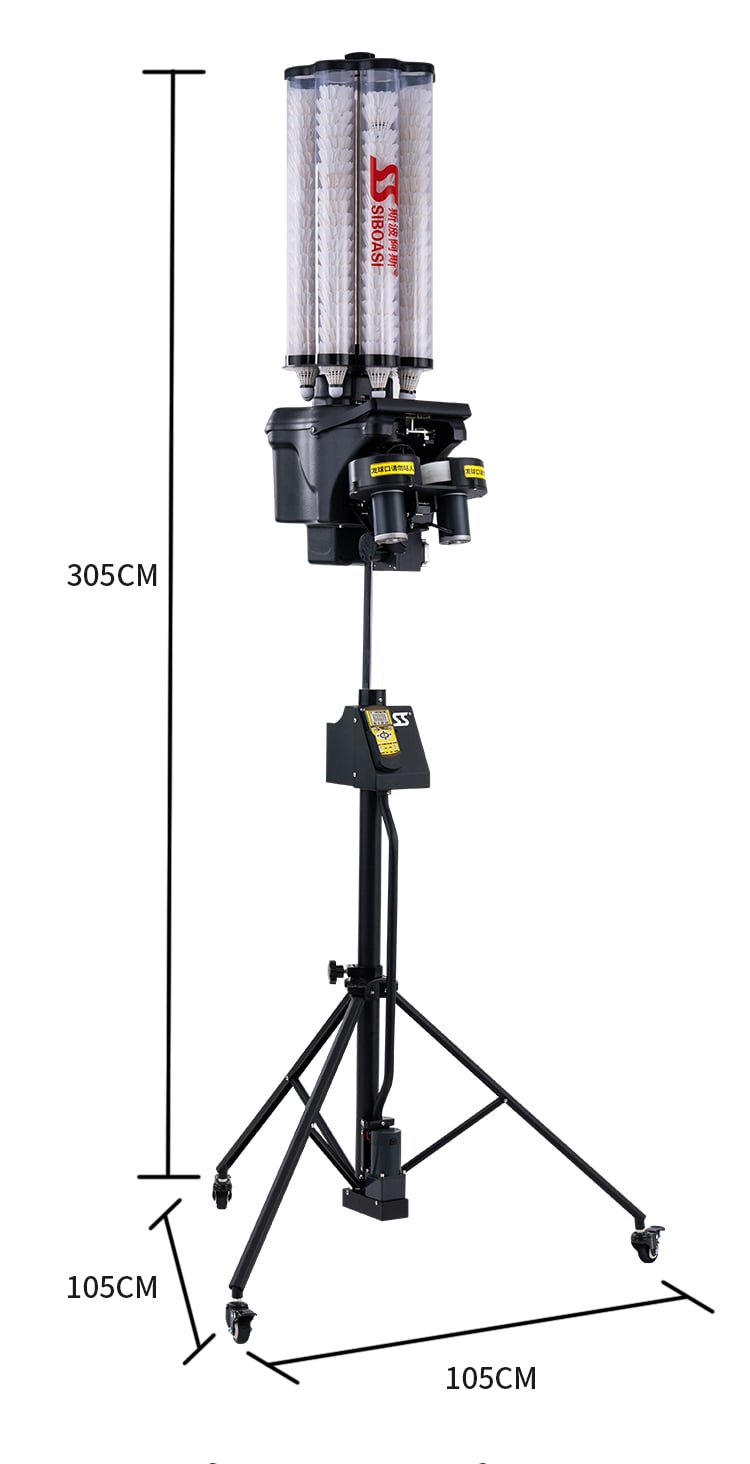

| Dimensions (Open) | 122 × 103 × 305 cm |
| Dimensions (Folded) | 122 × 103 × 235 cm | Net Weight | 31 KG |
| Package Sizes | Ball cage: 65×30.5×32 cm Machine head: 55×50×45.8 cm Tripod: 28.5×21.5×145 cm |
| Warranty | 2-Year comprehensive |
Complete Training Coverage

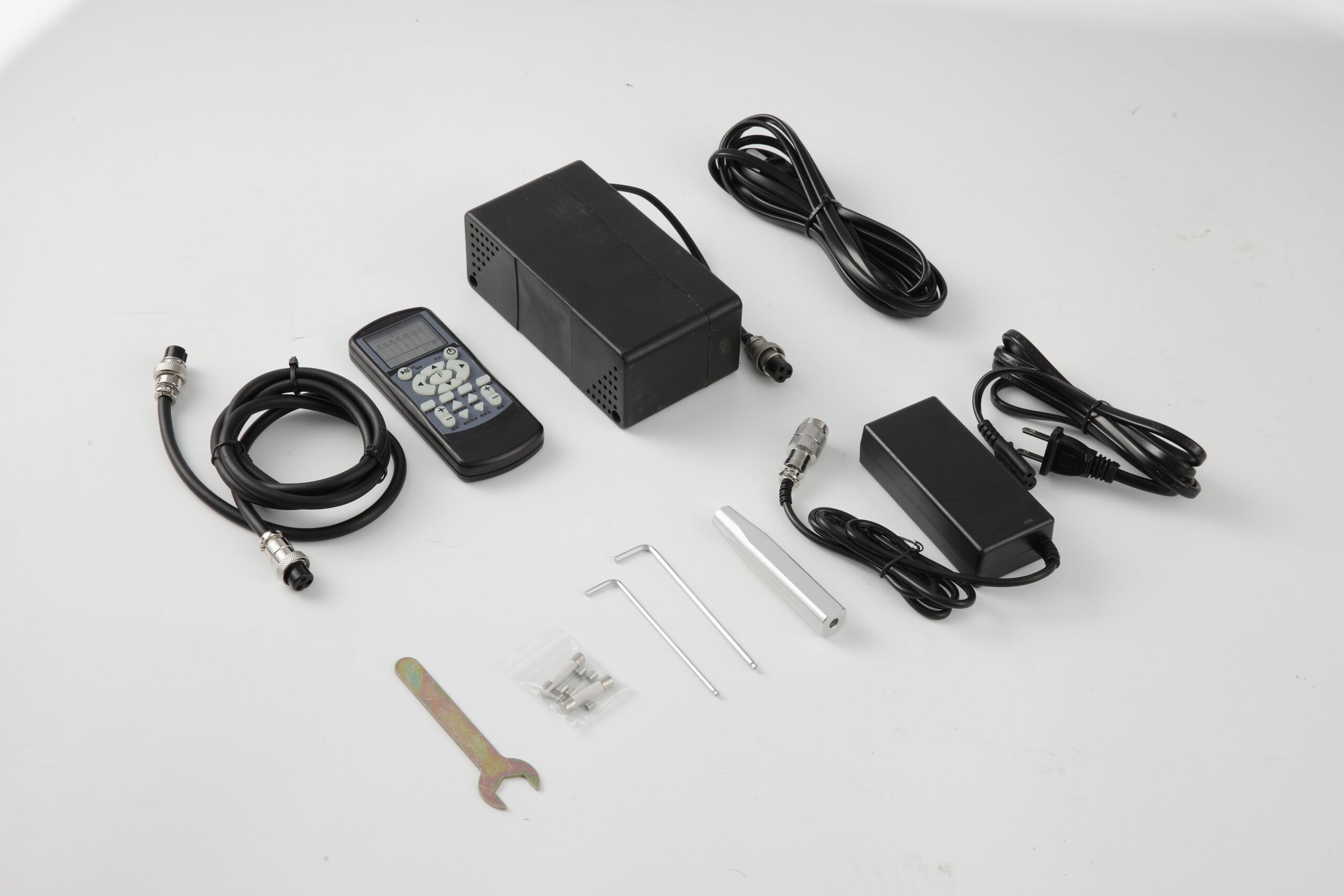

Complete Package

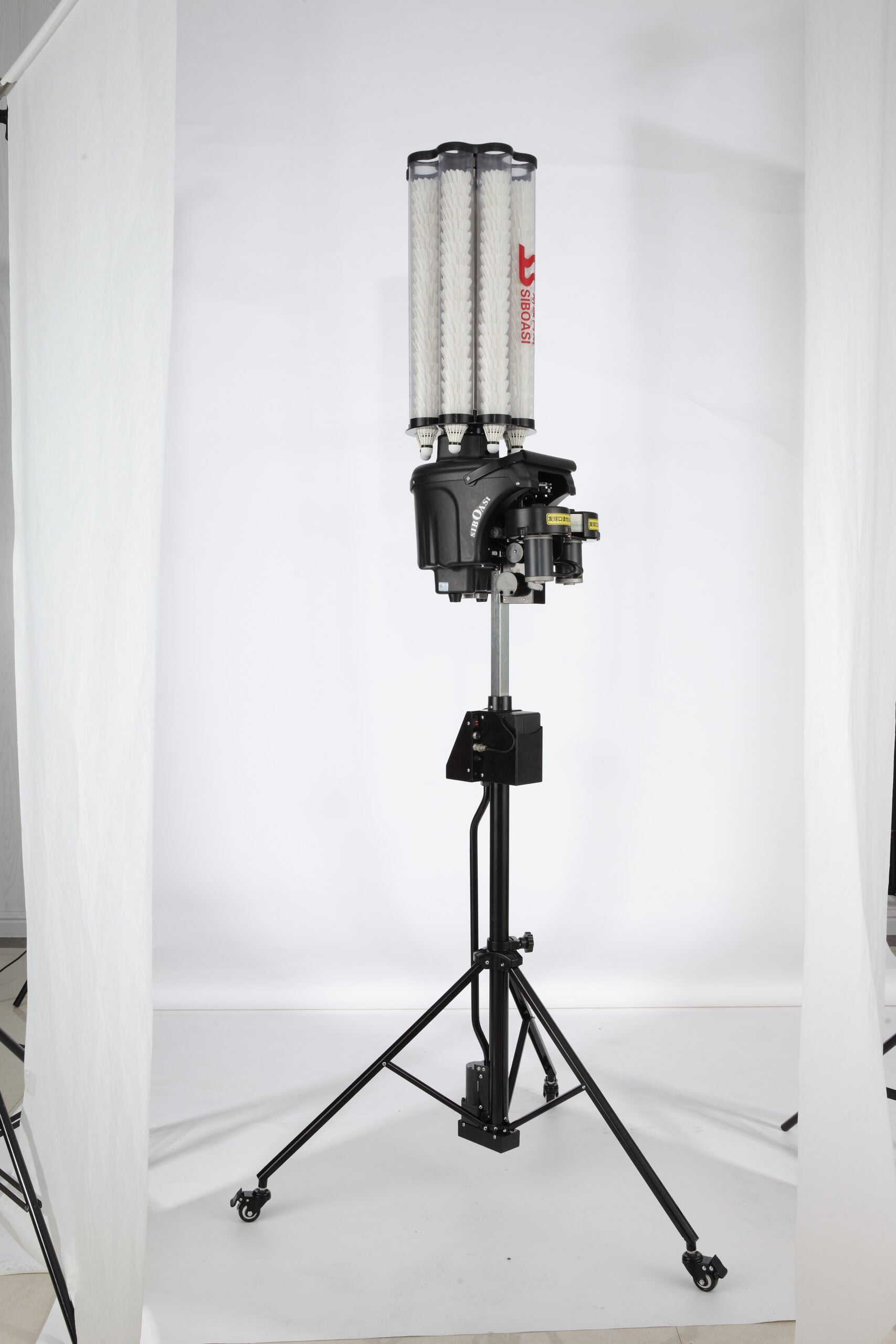

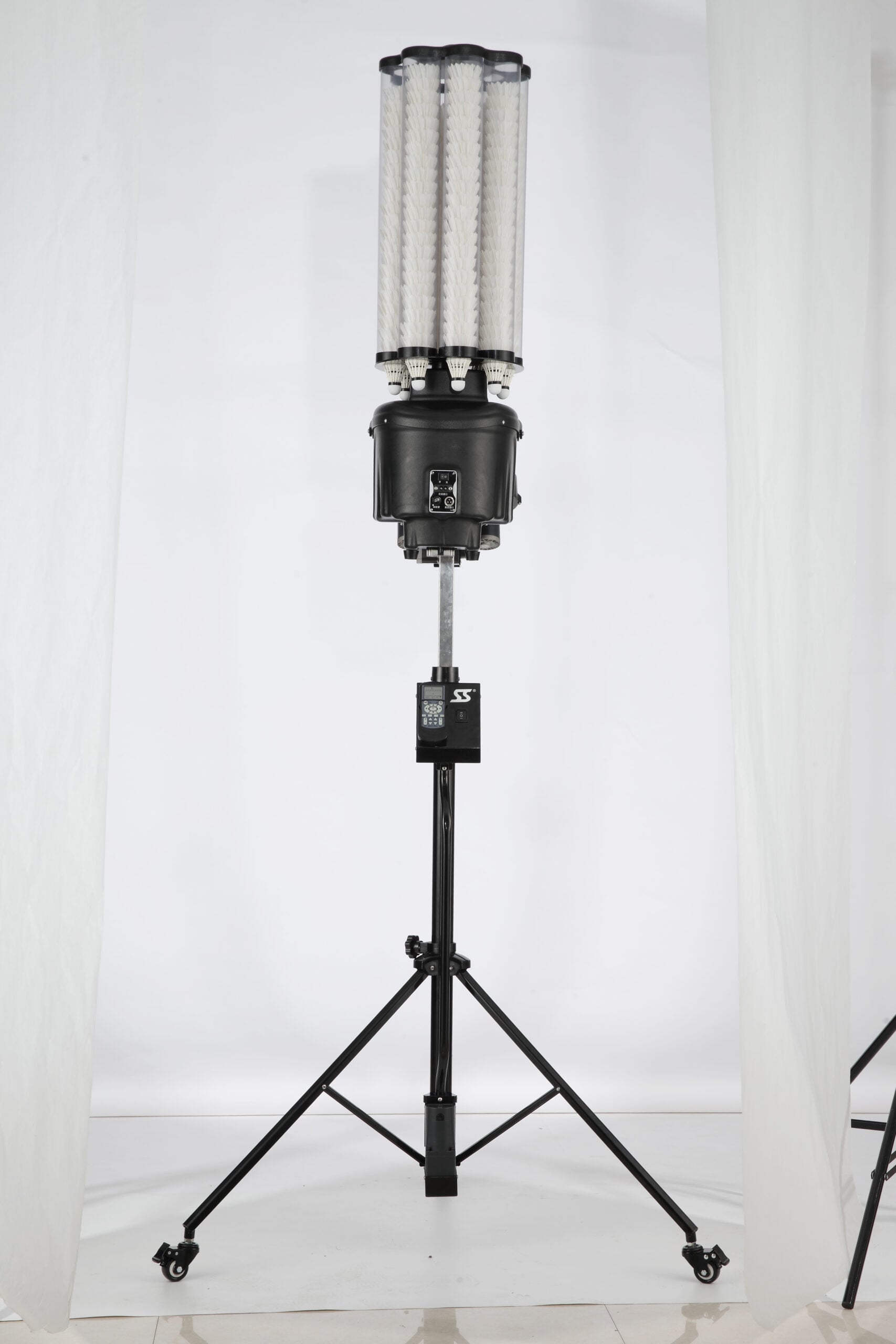

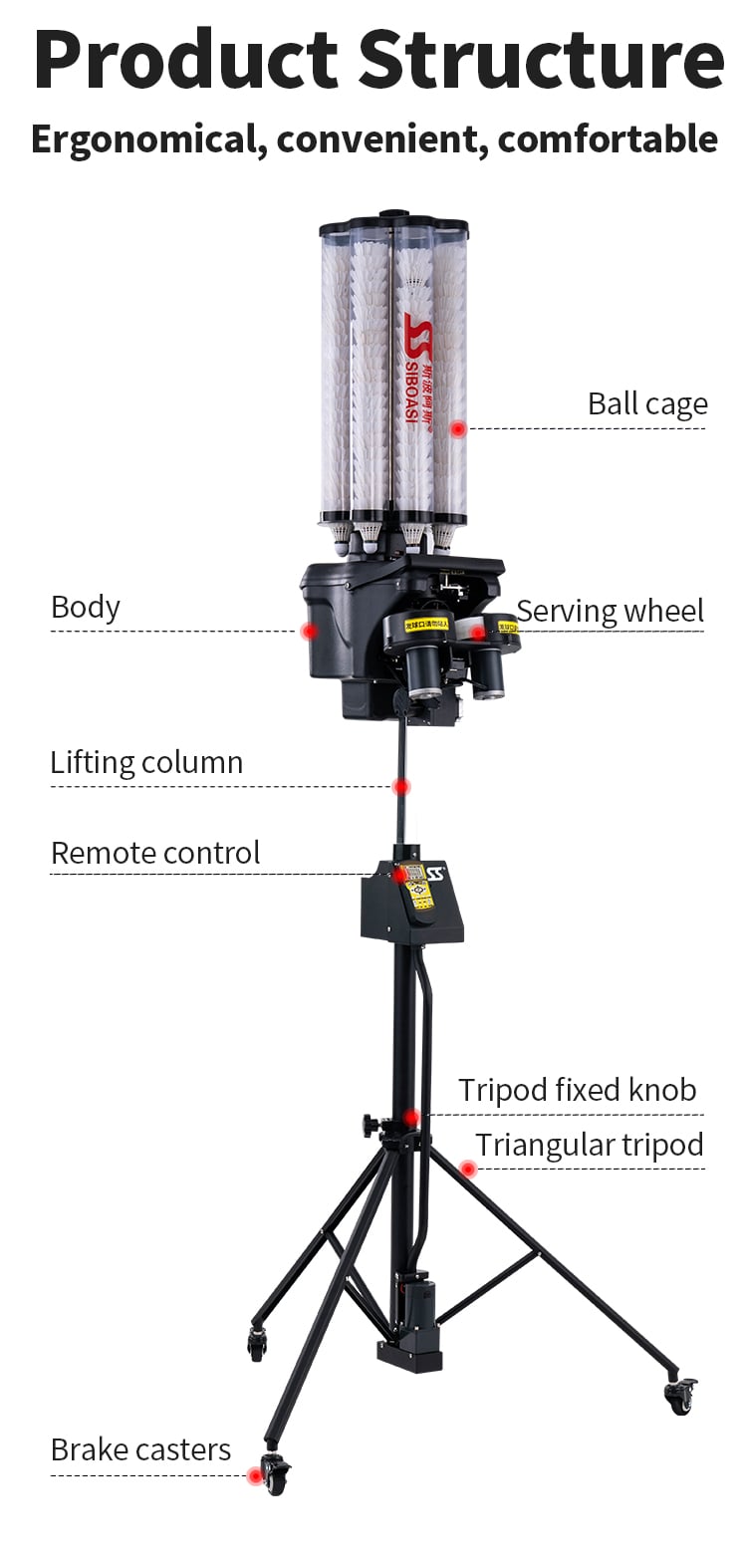

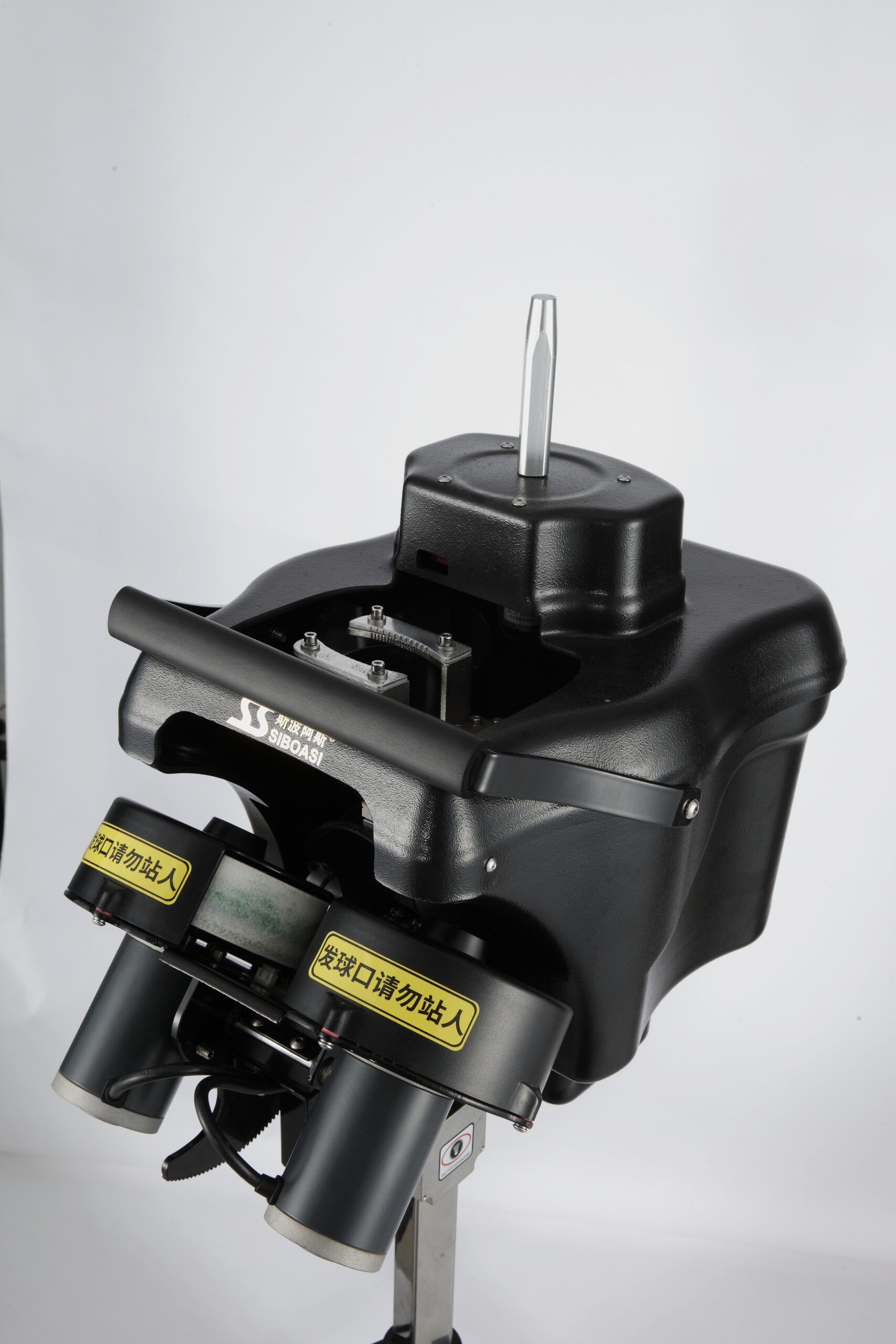

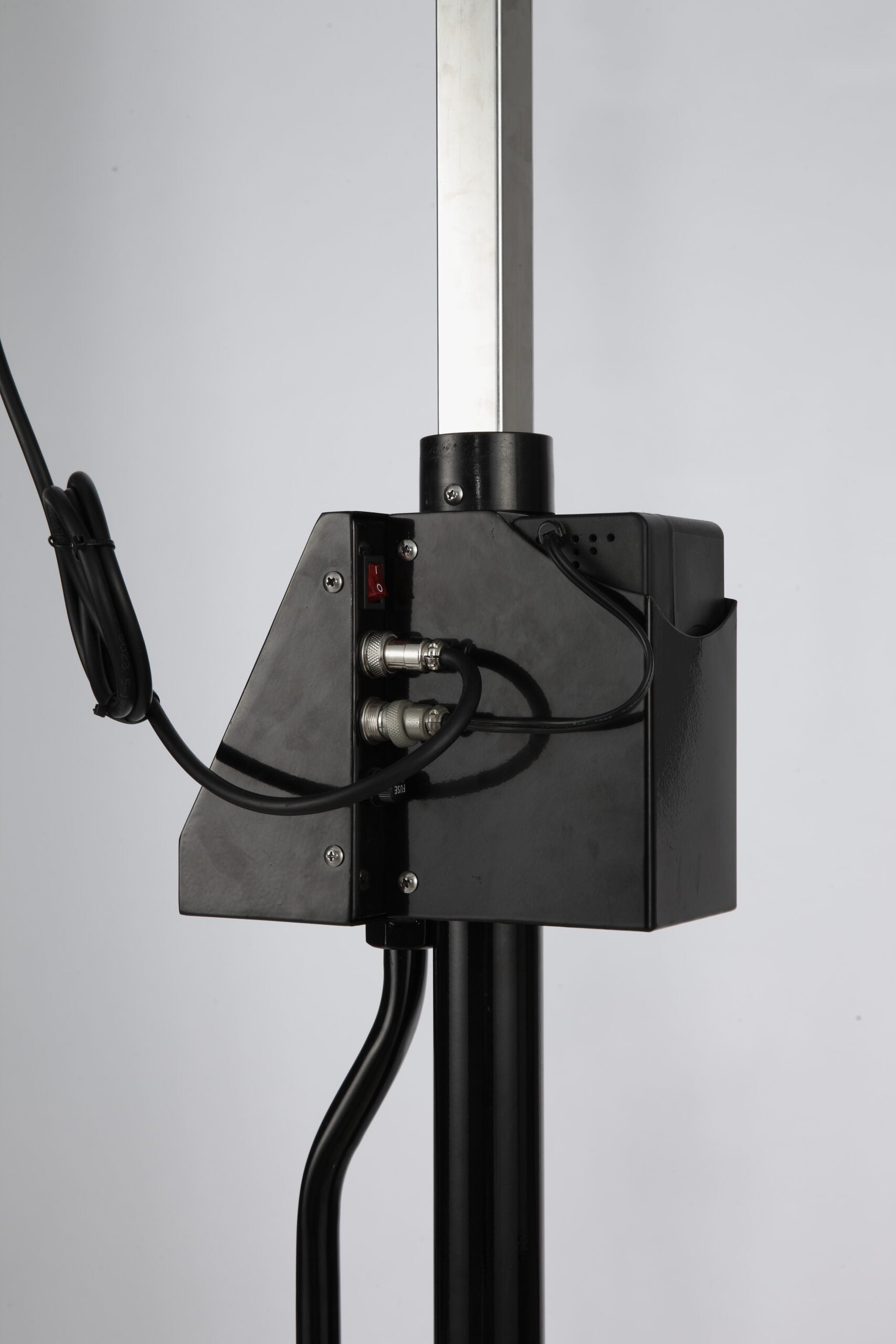

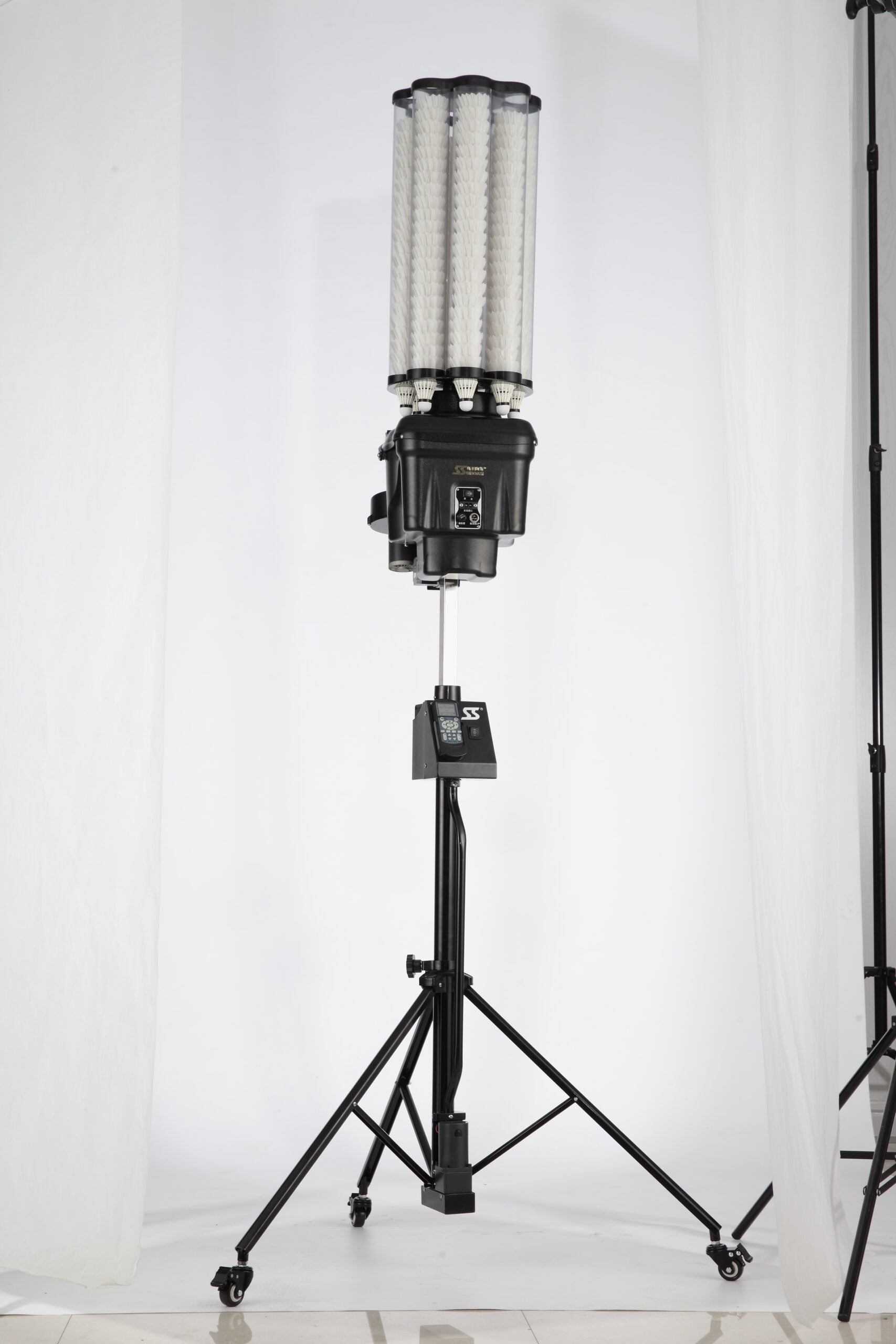

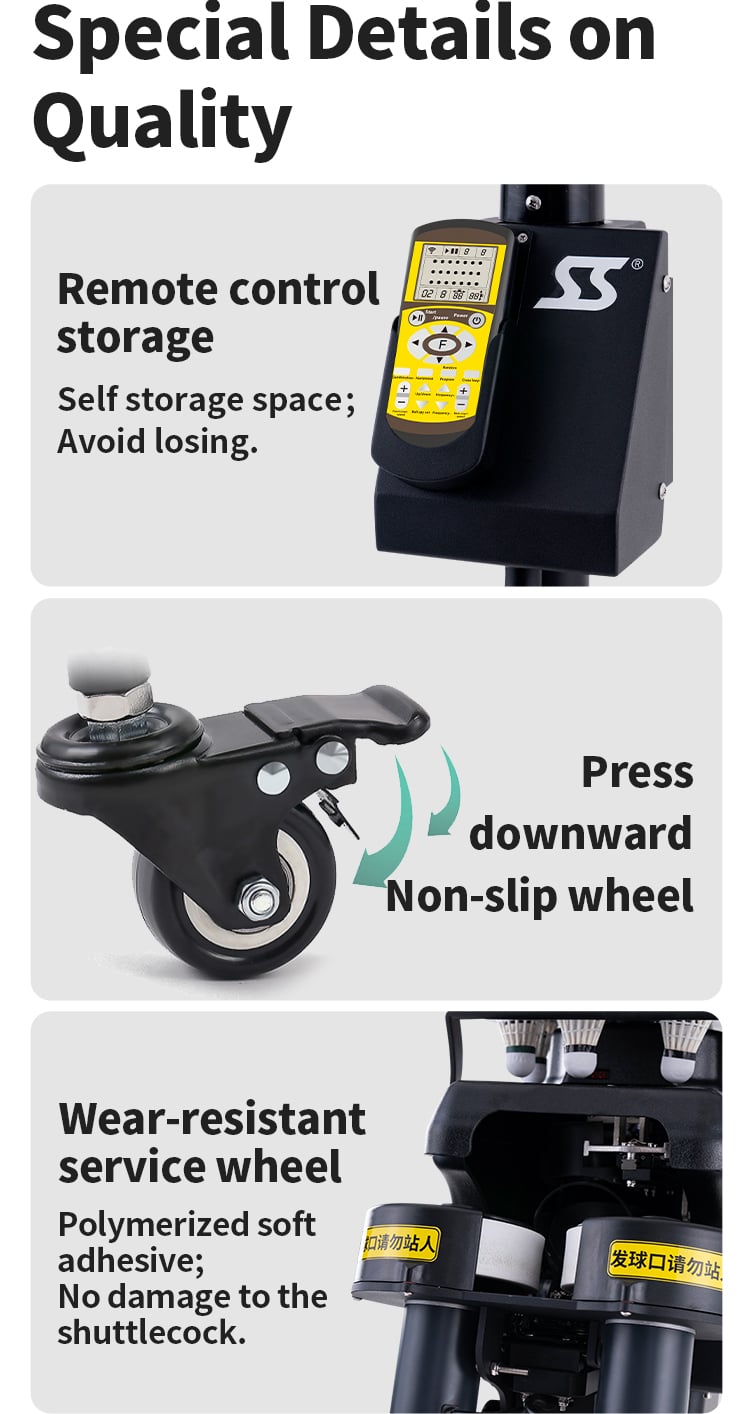

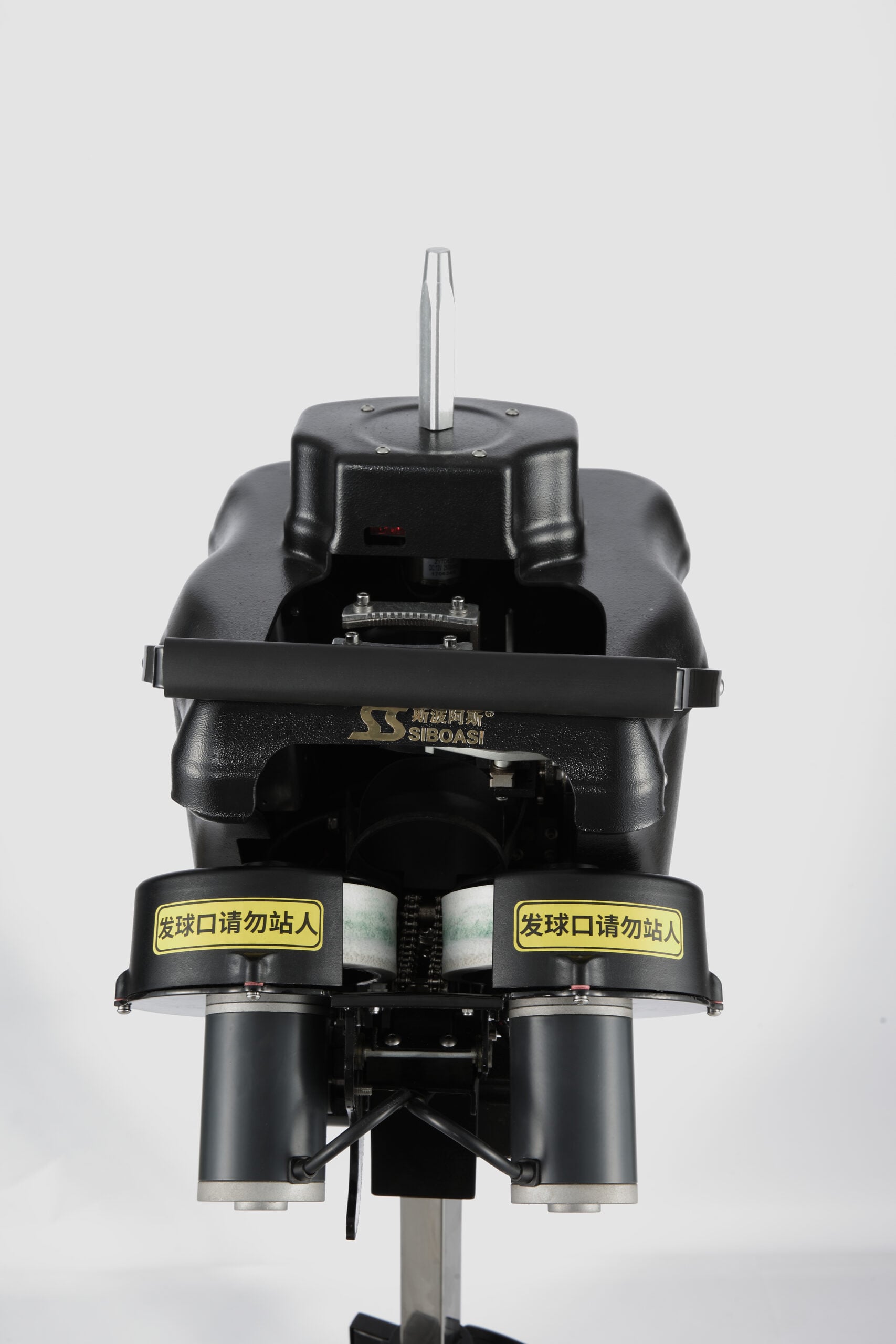

See Every Detail of the B2202A

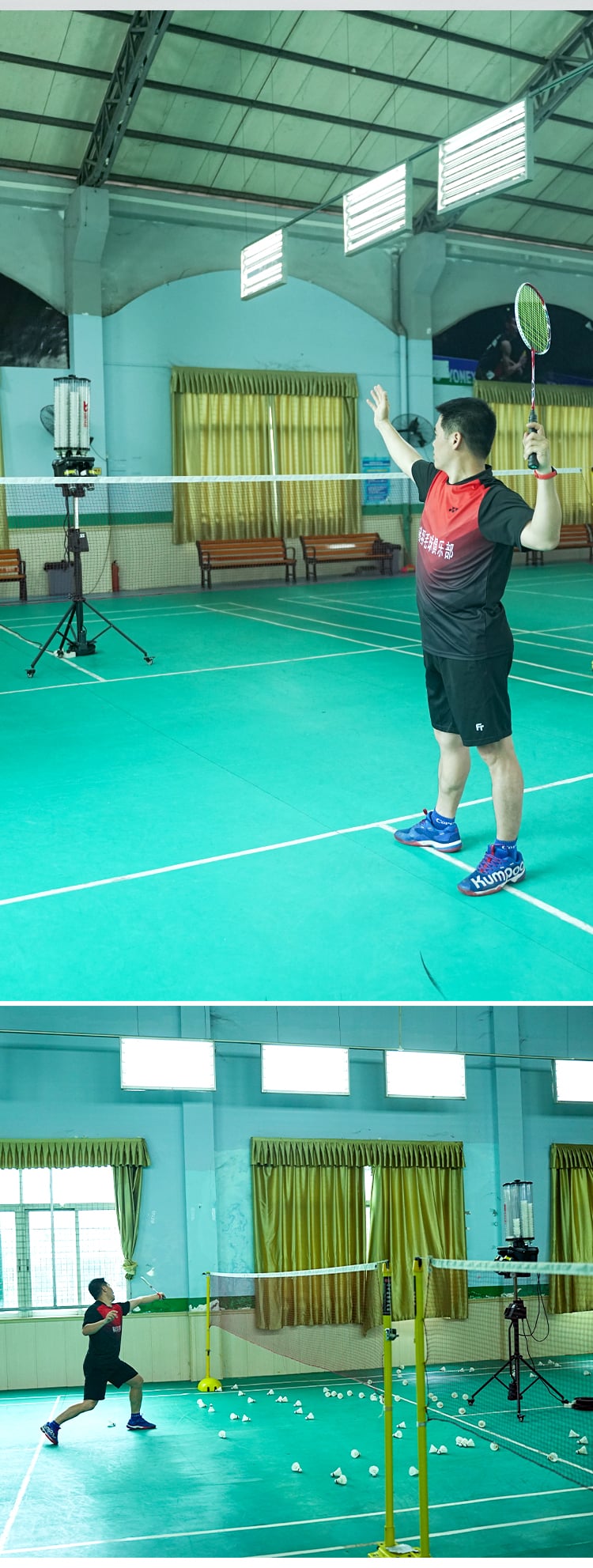

See the B2202A in Action
Easy Assembly Steps
Step 1
Install tripod and lock screws
Step 2
Mount machine head on tripod
Step 3
Install ball cage and connect power
Common Issues & Solutions
| Fault Phenomenon | Cause | Solution |
|---|---|---|
| Machine doesn’t work | AC power connect failed / Fuse damaged | Check power connection / Replace fuse |
| Weak shuttlecock shooting | Shuttlecock flexibility not enough | Use standard shuttlecocks |
| No ball out or ball stuck | Shooting wheels have oil/water / Non-standard ball | Clean wheels, use standard shuttlecocks |
| Unstable fixed point | Different shuttlecock specifications / Machine moved | Use same standard shuttlecocks / Brake wheels |
Frequently Asked Questions
Ready to Elevate Your Badminton Training?
Join hundreds of satisfied badminton clubs, academies, and coaches using the B2202A badminton machine – the ultimate shuttlecock shooting machine.
